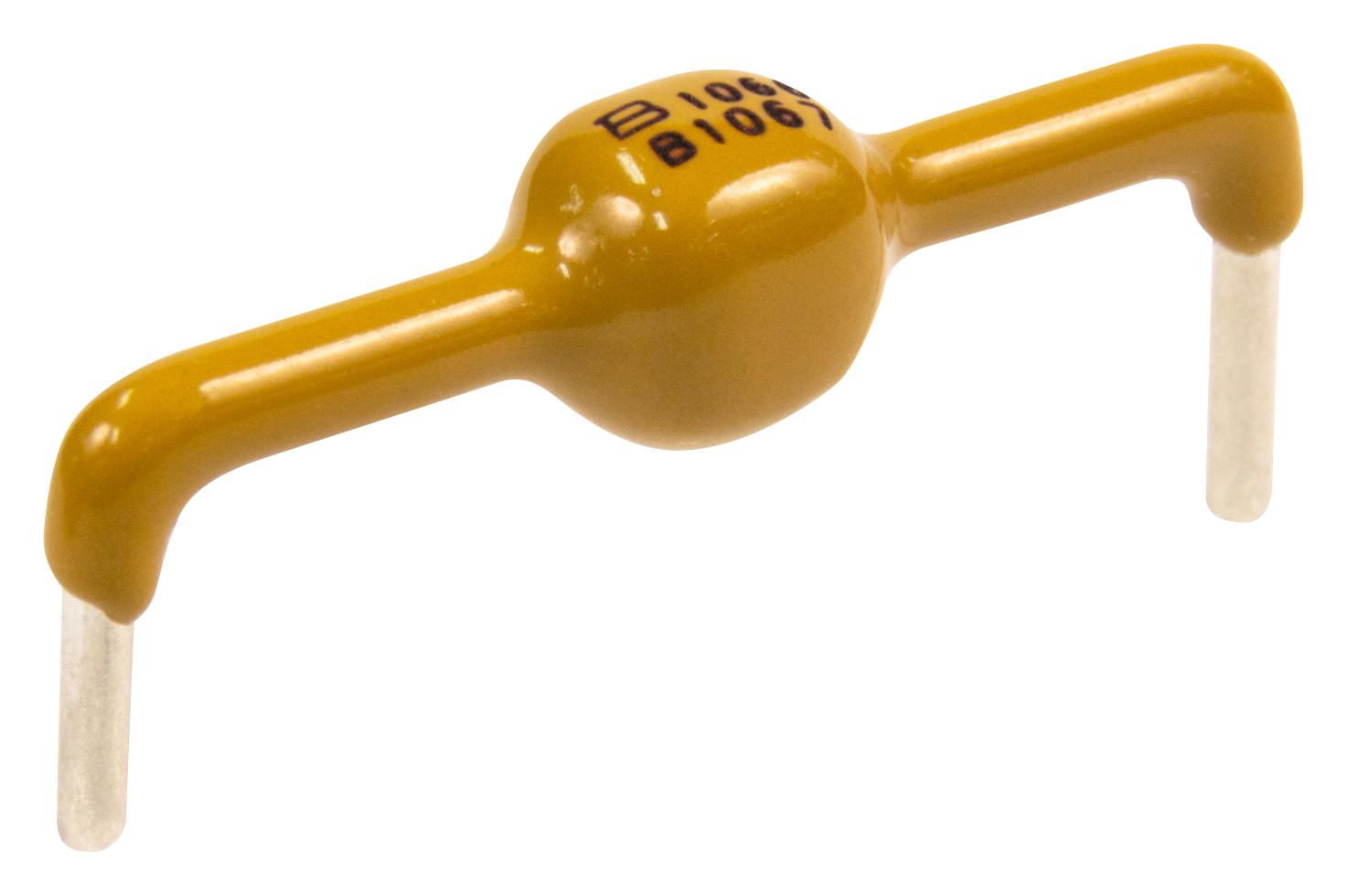

Bourns PTVS1190CTH High Voltage TVS Diode
The PTVS1190CTH high voltage bidirectional TVS diode provides robust protection against voltage surges on AC lines and high power DC buses. It offers a standoff voltage of 190 V, with a peak current rating of 1 kA according to IEC 61000-4-5 standards. The device features low clamping voltage, excellent temperature performance, RoHS compliance, and halogen-free construction. Ideal for AC line protection, surge suppression in harsh environments, and powering sensitive devices, it ensures reliable performance amidst voltage transients and surges in demanding applications.
Bourns PTVS1190CTH High Voltage TVS Diode Specifications:
- Repetitive Standoff Voltage: 190 V
- Peak Current Rating per IEC 61000-4-5: 1 kA
- Operating Temperature Range: -55°C to 125°C
- Storage Temperature Range: -55°C to +150°C
- Lead Soldering Temperature (10 s): 260°C
- Breakdown Voltage (VBR): 200-222 V
- Clamping Voltage (Vo): 207 V at 1kA surge
- Temperature Coefficient: 0.744 %/°C
- Capacitance: 0.274 nF
- Features: Bidirectional TVS, RoHS compliant, halogen-free, low clamping voltage
- Package: Through-hole, epoxy encapsulation, dimensions conforming to standards
- RoHS compliant* and halogen-free**
- Designed for AC line protection and high power DC bus protection
- Surge capability @ 8/20 µs waveform
- Repetitive current capability: 10 HA
- Lead temperature for soldering: 260°C
- Environmental ratings include moisture sensitivity and ESD classification
Buy the Bourns Series High Voltage TVS: PTVS1190CTH
Secure your devices against voltage surges with the Bourns High Voltage TVS Diode PTVS1190CTH. Designed for AC line and high-power DC bus protection, this bidirectional diode handles surge currents of up to 1kA and has a standoff voltage of 190V. Its low clamping voltage ensures minimal stress on protected components, while RoHS compliance and halogen-free construction make it environmentally friendly. Easy to install and reliable in extreme temperatures, it’s the perfect choice for demanding surge suppression applications in industrial and electronic systems.
Buy Bourns high voltage high current TVS diode PTVS1190CTH now and ensure reliable surge protection for your sensitive electronics in harsh environments.
