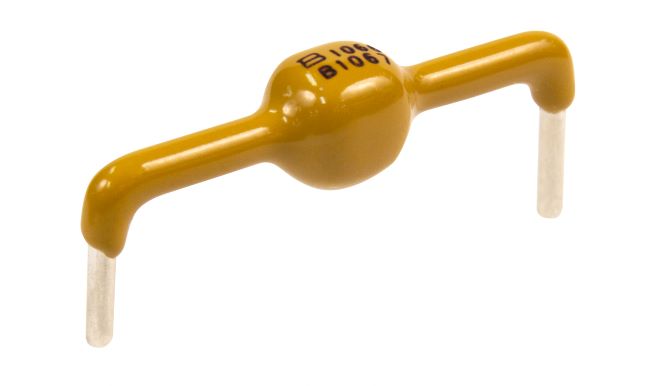

Bourns PTVS1380CTH High Current TVS Diode
Bourns PTVS1-380C-TH series high current bidirectional TVS diodes are engineered for robust protection in high-power DC bus clamping applications. These diodes provide bidirectional port protection, safeguarding sensitive circuitry from voltage surges. Featuring a 10kA surge capability and low clamping voltage, they effectively suppress transient voltages while minimizing signal distortion. The devices are RoHS compliant and meet IEC 61000-4-5 surge requirements, making them ideal for industrial power supplies, motor drives, and other demanding applications. They are available with standoff voltage ratings of 58V and 76V, offering flexibility in design.
Bourns PTVS1380CTH High Current TVS Diode Specifications:
- Applications: High power DC bus clamping
- Surge Capability: 10 kA, 8/20 µs
- Clamping Voltage: 110-140 V (typical)
- Standoff Voltage: 58 V or 76 V
- Operating Junction Temperature Range: -55 to +125 °C
- Storage Temperature Range: -55 to +150 °C
- Repetitive Standoff Voltage: 58 V (PTVS10-058C-TH), 76 V (PTVS10-076C-TH)
- Breakdown Voltage: 64-95 V
- Standby Current: ≤ 10 μA
- Capacitance: 7.5 nF (PTVS10-058C-TH), 5.6 nF (PTVS10-076C-TH)
- Package: Through-Hole
Buy the PTVS1-380C-TH BOURNS High Current TVS Diode | myMectronic
Purchase the Bourns PTVS1-380C-TH securely and reliably for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy Bourns PTVS1380CTH?
You can click on the BUY or RFQ button to purchase PTVS1380CTH from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PTVS1380CTH?
You can download the PTVS1380CTH datasheet or visit the Bourns website for support.
Who is the manufacturer of PTVS1380CTH?
Bourns
