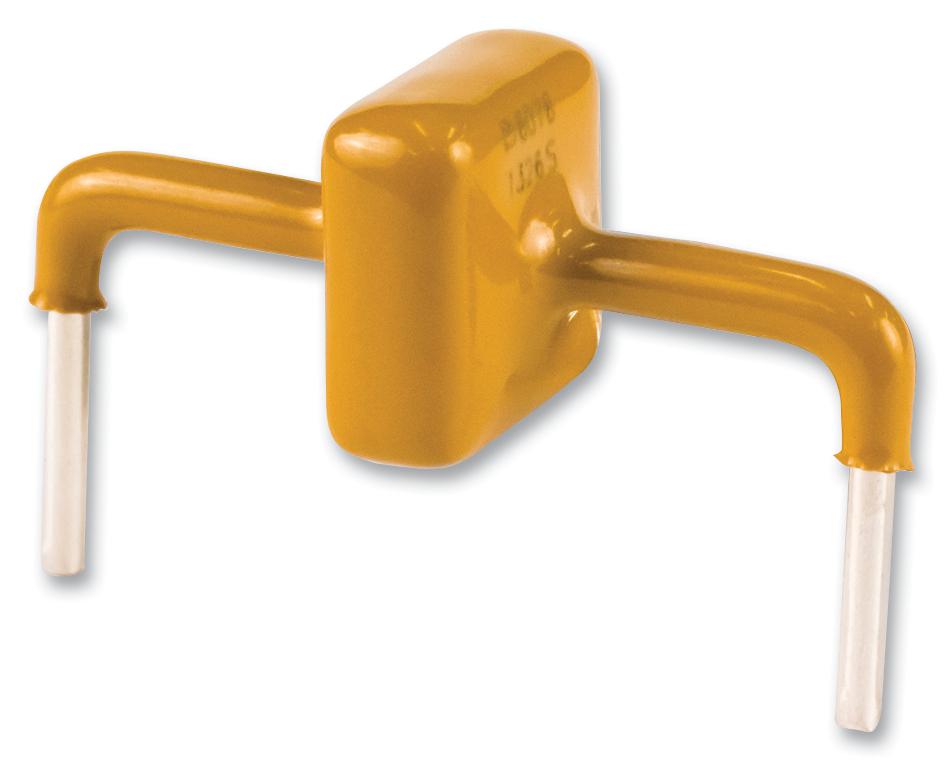

Bourns PTVS6058CTH High Current TVS Diodes
The PTVS6-058C-TH is a high-current bidirectional TVS diode designed for high power DC bus protection. It features a surge capability of 6 kA (8/20 μs waveform), low clamping voltage, and excellent temperature performance. Suitable for industrial and power systems, it offers standoff voltages of 58V and 76V, with UL recognized and RoHS compliant. This robust device ensures reliable transient suppression, withstanding temperatures from -40°C to +125°C and operating within a storage range of -55°C to +150°C. It enhances system reliability by protecting against voltage spikes and surges effectively.
Bourns PTVS6058CTH High Current TVS Diodes Specifications:
- Repetitive Standoff Voltage: 58 V (PTVS6-058C-TH), 76 V (PTVS6-076C-TH)
- Peak Current Rating: 6 kA (8/20 μs waveform)
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Lead Temperature (soldering, 10 s): 260°C
- Electrical Characteristics: Standby Current 10 nA, Breakdown Voltage 35 V (PTVS6-058C-TH), 92 V (PTVS6-076C-TH), Clamping Voltage: 110 V (58V model), 140 V (76V model)
- Capacitance: 45 nF (58V model), 3.3 pF (76V model)
- Dimensions: A 24.15 mm, B 2.4 mm, C 1.75 mm, D 6.00 mm, G 12 mm, H 6 mm
- Material: Epoxy encapsulation, UL 94V-0, Silver-plated leads, Pb-free solder compatibility
- Compliance: RoHS, UL Recognized (pending), IEC 61000-4-5 surge requirements
Buy the Bourns Series PTVS High Current TVS Diodes: PTVS6-058C-TH
Buy the Bourns PTVS6-058C-TH high-current bidirectional TVS diode online today. Designed for reliable high power DC bus protection, it features 6 kA surge capacity, low clamping voltage, and withstands temperatures from -40°C to +125°C. Its robust construction and RoHS compliance ensure safety and durability for industrial and power systems. With UL recognition pending, this versatile device effectively suppresses voltage transients, ensuring system stability and longevity. Invest in this dependable transient voltage suppression solution to enhance your electrical infrastructure.
Get Bourns PTVS6-058C-TH today—built for high power DC bus protection and surge suppression.
Frequently Asked Questions
Where can I buy Bourns PTVS6058CTH?
You can click on the BUY or RFQ button to purchase PTVS6058CTH from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PTVS6058CTH?
You can download the PTVS6058CTH datasheet or visit the Bourns website for support.
Who is the manufacturer of PTVS6058CTH?
Bourns
