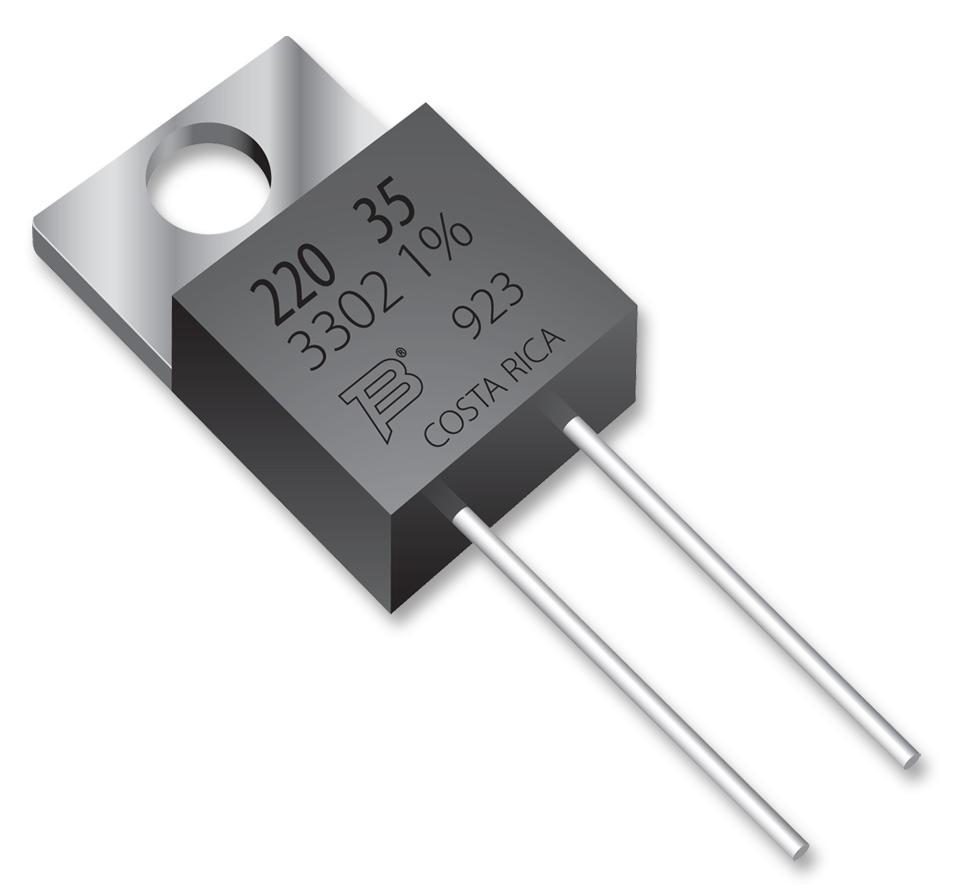

Bourns PWR220T3550R0J Power Resistor
The PWR220T-20 Series power resistor is a TO-220 DPAK style device designed for high power applications such as current measurement, snubber, and discharge circuits. Manufactured with thick film on alumina ceramic, it offers features like low inductance, high power rating of 20W at 25°C, and RoHS compliance. Suitable for power supplies, motor drives, and test equipment, this resistor provides reliable performance, high dielectric strength, and excellent thermal stability, making it ideal for demanding electronic and industrial applications.
Bourns PWR220T3550R0J Power Resistor Specifications:
- Power Rating: 20 W at 25°C
- Resistance Range: 0.02 Ω to 130 KΩ
- Tolerance: ±1%, ±5%
- Resistance Values: 0.02, 0.03, 0.04, 0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 150, 200, 250, 300, 330, 470, 560, 680, 750, 820, 1000, 1500, 2000, 2500, 3000, 3300, 4700, 5600, 7500, 10000, 15000, 20000, 25000 Ω
- Resistance Code: R020, R030, R040, R050, R100, R200, R500, R1000, R1500, R2000, R2500, R3000, R3300, R4700, R5600, R7500, R10000, R15000, R20000, R25000
- Maximum Working Voltage: 250 V
- Inductance: 0.1 µH maximum
- Thermal Resistance: 6.5 °C/W
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: 2 kVAC
- Insulation Resistance: 10 GΩ
- Material: Thick film resistor on alumina substrate
- Housing: Epoxy
- Pins: Tinned Copper
- Flammability: UL 94V-0 compliant
Buy the Bourns Series PWR220T-20 Power Resistor: PWR220T3550R0J
Order Bourns PWR220T3550R0J power resistor online today and ensure your electronic projects benefit from 20W high power handling, low inductance, and RoHS compliance. Perfect for power supplies, motor drives, and industrial testing, this resistor guarantees dependable performance. Easy to integrate, it is designed for demanding applications where stability and durability are critical. Shop now to take advantage of quick delivery and expert support, securing a reliable component for your next engineering solution.
Buy Bourns PWR220T3550R0J high power resistor now and experience unmatched reliability and performance in industrial and electronics applications.
Frequently Asked Questions
Where can I buy Bourns PWR220T3550R0J?
You can click on the BUY or RFQ button to purchase PWR220T3550R0J from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PWR220T3550R0J?
You can download the PWR220T3550R0J datasheet or visit the Bourns website for support.
Who is the manufacturer of PWR220T3550R0J?
Bourns
