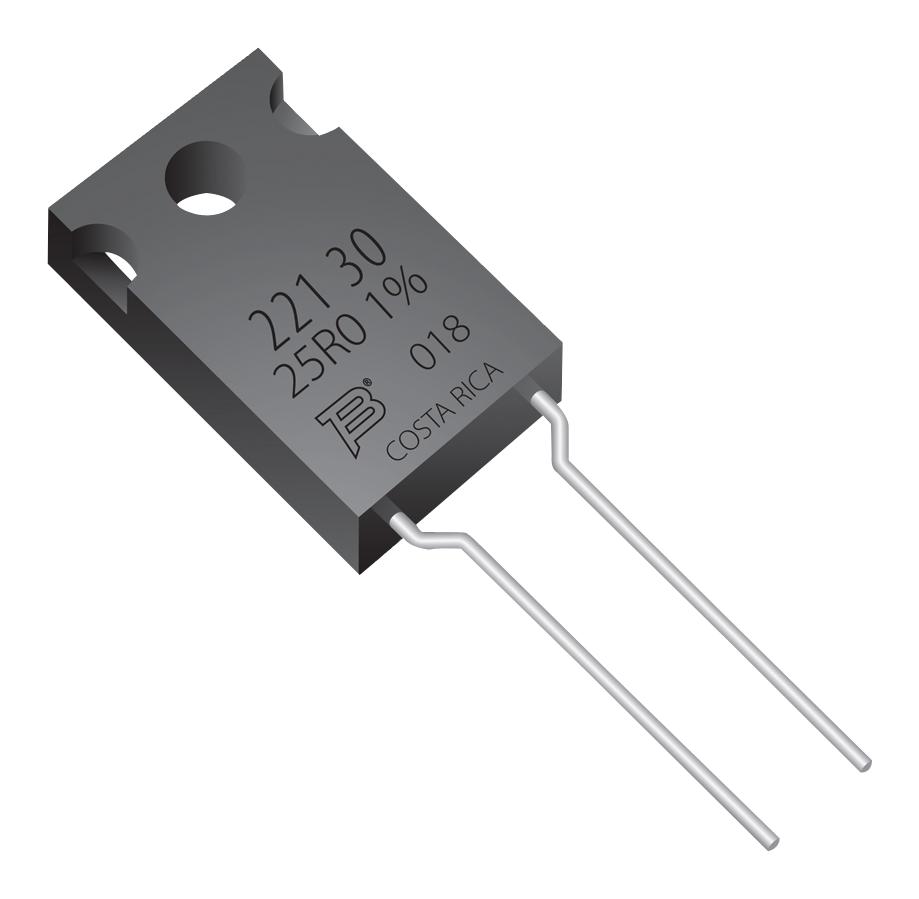

Bourns PWR221T301002F TO-220 Power Resistor
Bourns PWR221T-30 series power resistors are designed for demanding applications requiring high power dissipation and reliability. These resistors, housed in a TO-220 package, employ thick film on alumina ceramic technology to ensure robust performance. They are AEC-Q200 compliant, making them suitable for automotive and other critical applications. Common uses include current limiting, capacitor discharge, and current measurement circuits in power supplies for telecom and industrial equipment. The resistor offers a power rating of 30W and a wide range of resistance values, ensuring versatility in circuit design.
Bourns PWR221T301002F TO-220 Power Resistor Specifications:
- Resistance: 0.02Ω to 130KΩ
- Power Rating @25˚C CaseTemperature: 30W
- Tolerance: ±1%, ±5%
- TCR: ±100 PPM/˚C (0.100Ω<R<130.0KΩ), ±300 PPM/˚C (0.050Ω<R<0.100Ω), ±600PPM/˚C (0.020 Ω<R<0.050 Ω)
- Thermal Resistance- Rthj: 4.2 ˚C/W
- Inductance: 0.1µH maximum
- Operating Voltage: √P*R with a maximum of 250V
- Dielectric Strength: 2 KV AC
- Insulation Resistance: 10 GΩ
- Operating Temperature: -55˚C to +150˚C
- Short Term Overload: ΔR ±0.25 % (2x Pr for R < 2Ω, 1.6x Pr for R≥2Ω, V<1.5xOperatingVoltage)
- Load Life: ΔR ±1.0 % (2000 hours at rated power)
- Thermal Shock: ΔR ±0.5 % (-55˚C to 155˚C, 5 cycles)
- Resistance to Soldering Heat: ΔR ±0.5 % (10 seconds at 270˚C)
- Vibration: ΔR ±0.25 % (20 G 10-2000Hz .06” D.A.)
- Terminal Strength: ΔR ±0.2 % (MIL-STD-202, Method 211 Test A1)
- Shock: ΔR ±0.5 % (Saw Tooth: 100 g/6ms)
- Humidity: ΔR ±0.5 % (Steady State 1000hrs.85°C/85 %RH)
- High Temperature Exposure: ΔR ±0.5 % (100hrs- 40 %Pr@+125°C)
- Material Characteristics - Resistor: Thick film
- Material Characteristics - Substrate: Alumina (AL203)
- Material Characteristics - Housing: Epoxy
- Material Characteristics - Pins: Tinned Copper (Sn/Cu)
- Material Characteristics - Flammability: Conforms to UL-94V0
- Moisture Sensitivity Level: 1
- ESD Classification (HBM): 3B
- Packaging: 50 pcs./tube
