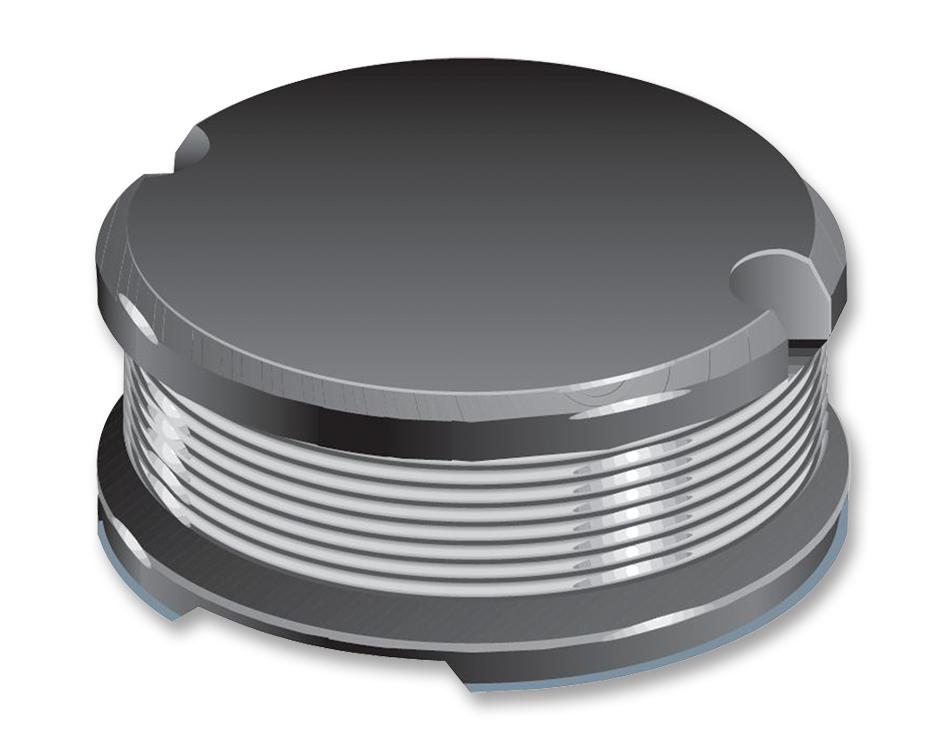

Bourns SDR13073R3ML Power Inductor
The SDR1307 Series SMD Power Inductor offers high efficiency in compact sizes, ideal for DC/DC converters, portable communication devices, and consumer electronics. Featuring ferrite core and enamelled copper wire, these inductors provide reliable performance across a wide temperature range. They are RoHS compliant, with varied inductance values from 1.5 µH to 1000 µH, and have dimensions optimized for ease of mounting in small PCB layouts. Suitable for LCD TVs, camcorders, car radios, and other electronic equipment requiring stable inductance and minimal electromagnetic interference.
Bourns SDR13073R3ML Power Inductor Specifications:
- Material: Ferrite core, Enamelled copper wire
- Test Voltage: 10V
- Temperature Range: -55°C to +125°C
- Size: 13 mm maximum diameter
- Inductance Values: 1.5 µH to 1000 µH
- Moisture Sensitivity Level: Level 1
- Rated Current: 580 mA to 4100 mA depending on model
- Packaging: 400 pieces per reel
- Dimensions: Diameter approximately 13 mm, height varies per model, typical around 10-20 mm
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
Buy the Bourns SDR1307 – Reliable Power Inductor for Industrial Applications
Order the Bourns SDR1307 series power inductor online today to ensure your electronic projects benefit from high efficiency, compact size, and reliable performance. These inductors are suitable for various applications including DC/DC converters, portable devices, and consumer electronics. With RoHS compliance and a wide range of inductance values from 1.5 µH to 1000 µH, they offer excellent performance and durability. Purchase now for fast delivery and enhance your design with proven, high-quality components engineered for industrial and consumer needs.
Buy Bourns SDR1307 high-quality power inductor now and experience unmatched reliability and performance in your electronic designs.
Frequently Asked Questions
Where can I buy Bourns SDR13073R3ML?
You can click on the BUY or RFQ button to purchase SDR13073R3ML from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SDR13073R3ML?
You can download the SDR13073R3ML datasheet or visit the Bourns website for support.
Who is the manufacturer of SDR13073R3ML?
Bourns
