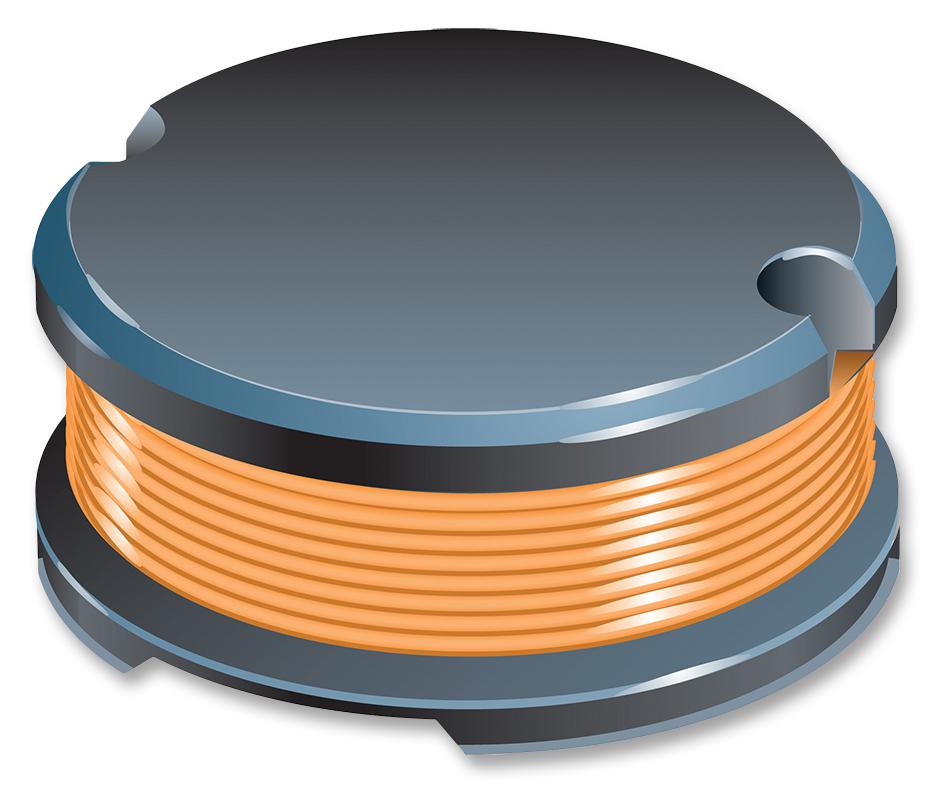

Bourns SDR1307A330K Power Inductor
The SDR1307A series comprises surface-mount power inductors designed for automotive, lighting, and power supply applications. These inductors feature high saturation currents up to 20A, low resistance, and operate effectively within temperatures from -40°C to +125°C. Made with RoHS compliance and halogen-free materials, they ensure durability and environmental safety. Suitable for DC/DC converters and high-current power circuits, they offer stable inductance with minimal variation at rated currents. Compact, reliable, and easy to solder, these inductors meet strict industry standards including AEC-Q200 qualification.
Bourns SDR1307A330K Power Inductor Specifications:
- Inductance range: 1.5 to 1000 pH
- Operating Temperature: -40 °C to +125 °C
- Saturation Current: up to 20A
- Resistance: typically 20 to 35 mΩ depending on model
- Material: RoHS compliant, halogen-free
- Soldering Profile: peak temperature 250°C, max 5 sec.
- Dimensions: variable, typical sizes include 7.0 x 7.0 x 4.0 mm
- Color: as specified in datasheet
- RoHS Compliant and Halogen Free
- Qualified to AEC-Q200 standards
- Application: DC/DC converters, automotive systems, power supplies
- Packaging: 400 pcs per reel
- Temperature Rise: typically 28°C at rated RMS current
- Resistance to Soldering Heat: 10 sec at peak temperature
- Compliance: RoHS Directive 2002/95/EC, Recast 2011/65/EU
Buy the Buy Bourns SDR1307A Series Power Inductor Part Number SDR1307A330K Online
Order the Bourns SDR1307A330K power inductor online today to ensure high saturation current up to 20A and excellent thermal stability from -40°C to +125°C. These RoHS compliant, halogen-free inductors are ideal for automotive, lighting, and power supply applications. With proven AEC-Q200 qualification, they provide reliable operation in demanding environments. Compact and easy to solder, they feature minimal inductance drop and low resistance, making them perfect for high-current DC/DC converters and power management circuits. Experience quick delivery and trusted quality by purchasing online today.
Buy Bourns SDR1307A330K now and experience unmatched reliability and high-current performance for automotive and power supply circuits.
Frequently Asked Questions
Where can I buy Bourns SDR1307A330K?
You can click on the BUY or RFQ button to purchase SDR1307A330K from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SDR1307A330K?
You can download the SDR1307A330K datasheet or visit the Bourns website for support.
Who is the manufacturer of SDR1307A330K?
Bourns
