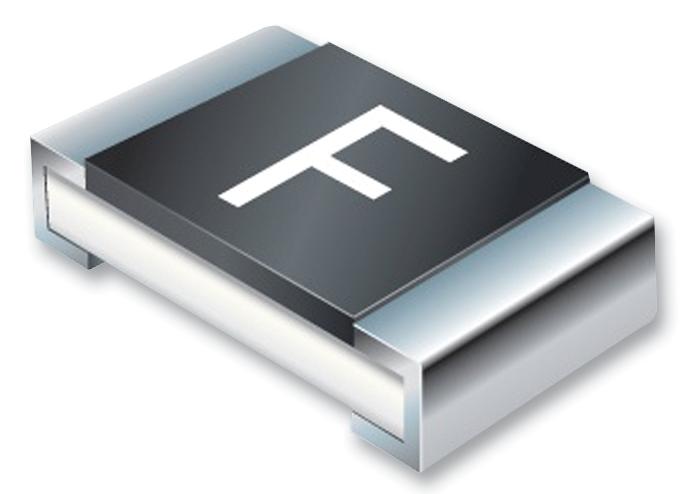

Bourns SF0603FP0502 Precision Surface Mount Chip Fuse
The SinglFuse SF-0603FP Series consists of fast-acting, surface-mount precision thin film chip fuses designed for overcurrent protection in compact electronic devices. With an 0603 (1608) footprint, these UL-listed and RoHS-compliant fuses are suitable for automated assembly and reliable protection in portable memory, cell phones, LCD monitors, battery packs, and industrial controllers. They feature a resistance value less than 0.088Ω at rated current, withstand thermal and mechanical stresses, and meet safety standards for modern electronic applications.
Bourns SF0603FP0502 Precision Surface Mount Chip Fuse Specifications:
- Footprint: 1608 (EIA 0603)
- Rated Currents: 0.50A to 5.00A
- Rated Voltage: 50V DC
- Resistance: Less than 0.088Ω at rated current
- Fusing Time: Within 5 seconds at 200% rated current
- Operating Temperature: -20°C to +105°C
- Surge Capacity: 50A at rated voltage
- UL Listing: UL 248-14, File Number 198545
- RoHS and halogen free compliant
- Dimensions: Length approximately 1.6mm, width 0.8mm
- Material: Ceramic substrate with tin-plated contact
- Environmental Resistance: Solder heat, dry heat, moisture, and thermal shock resistant
- Soldering: Peak temperature 250°C for 5 seconds with pre-heating at 150-180°C for 90 seconds
- Packaging: Tape and reel, 5000 pieces per reel
Buy the Buy Bourns SF-0603FP Series Part Number SF0603FP0502 Online
Order Bourns SF-0603FP Series precision fast acting surface mount fuses online today. Designed for overcurrent protection in portable memory, cell phones, LCD monitors, and industrial controllers, these UL-listed and RoHS-compliant fuses ensure safe and reliable operation. Featuring a compact 1608 footprint, resistance less than 0.088Ω, and capable of withstanding thermal and mechanical stresses, they are ideal for automated assembly and demanding electronic applications. Secure your supply of these high-quality fuses now for optimal device protection.
Buy Bourns SF-0603FP Series SF0603FP0502 now and experience unmatched reliability and high-speed overcurrent protection for compact electronics.
Frequently Asked Questions
Where can I buy Bourns SF0603FP0502?
You can click on the BUY or RFQ button to purchase SF0603FP0502 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SF0603FP0502?
You can download the SF0603FP0502 datasheet or visit the Bourns website for support.
Who is the manufacturer of SF0603FP0502?
Bourns
