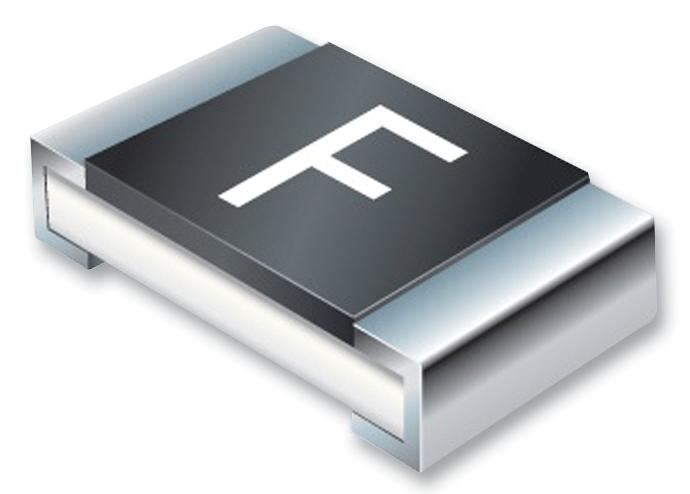

Bourns SF0603FP1002 Surface Mount Chip Fuse
The SF-0603FP Series consists of fast-acting surface mount fuses designed for overcurrent protection in miniature 0603 packages. These precision thin film chip fuses are UL listed and RoHS compliant, suitable for portable memory, cell phones, LCD monitors, and digital cameras. With rated currents from 0.50 A to 5.00 A and voltage ratings up to 50V, they offer reliable performance under thermal, mechanical, and environmental stresses. Their compact design facilitates automated assembly and ensures durability in demanding electronic applications.
Bourns SF0603FP1002 Surface Mount Chip Fuse Specifications:
- Size: 1608 (EIA 0603)
- Rated Voltage: 50V DC
- Rated Current: 0.50A to 5.00A
- Resistance: Measured with less than 10% of rated current
- Fusing Time: Within 5 seconds at 200% rated current
- Temperature Rating: -20°C to +105°C
- UL Listed: File No. 198545
- RoHS compliant and halogen free
- Construction: Ceramic substrate with thin film element
- Solder Reflow Compatibility: Peak 250°C, preheat 150-180°C for 90-120 seconds
- Environmental: Operating humidity 40%-75%, shelf life 2 years
- Durability Tests: Resistance to solder heat, dry heat, mechanical bending, and thermal shock
Buy the Buy Bourns SF-0603FP Series Part Number SF0603FP1002 Online
Order the Bourns SF-0603FP1002 surface mount chip fuse online today to ensure your electronic devices are protected with reliable, UL-listed fast-acting fuses. Designed for miniature spaces, these precision thin film fuses handle currents up to 1.00A and voltages up to 50V, making them perfect for mobile phones, LCD monitors, and digital cameras. Easy to incorporate into automated assembly lines, they guarantee durability and safety across various consumer and industrial applications. Don't compromise on overcurrent protection—buy online now for fast delivery and quality assurance.
Get Bourns SF-0603FP1002 today—built for precision and long-lasting durability in portable and consumer electronics.
