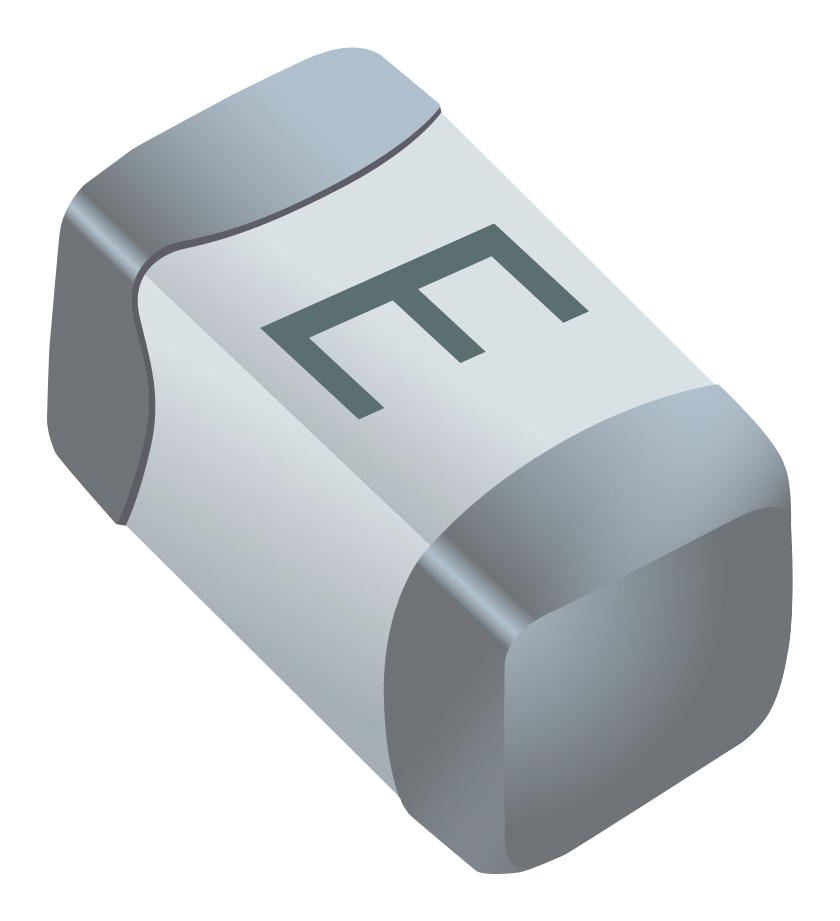

Bourns SF0603HI100M2 High Inrush Current Fuse
High inrush current withstand surface mount fuse designed for automated protection. The SF-0603HI series features a miniature 1608 (EIA 0603) footprint, UL 248-14 listing, and RoHS compliance, making it ideal for portable devices, cell phones, LCD monitors, battery packs, and industrial controllers. Its multilayer SMT design ensures reliable overcurrent protection with high inrush current handling capacity. Suitable for compact electronic assemblies requiring fast response to overloads while maintaining surface-mount compatibility for automated manufacturing processes.
Bourns SF0603HI100M2 High Inrush Current Fuse Specifications:
- Footprint: 1608 (EIA 0603)
- Resistance: Typical resistance measured with <10% rated current at 25°C
- Rated Current: 1.00A to 8.00A
- Voltage Rating: 32 V DC
- Fusing Time: Up to 60 seconds depending on model
- Resistance: 0.210Ω at 1A, lower at higher currents
- Temperature Range: -55°C to +150°C operating
- Moisture Resistance: 10 cycles, DCR change < +10%
- Vibration & Shock Resistance: No damage under specified MIL-STD tests
- Soldering Conditions: Reflow preheat 150–200°C for 60–120 seconds, wave solder suitable at 260°C
- Reel Packaging: 4,000 pieces per reel, tape dimensions compliant with EIA 481-2
- RoHS & Halogen Free: Yes
Buy the Bourns Series SF-0603HI High Inrush Current Withstand Surface Mount Fuse: SF0603HI100M2
Purchase the Bourns SF0603HI100M2 high inrush current surface-mount fuse online today. Designed for small electronic devices and industrial controllers, it withstands high inrush currents with rapid response. Its 1608 footprint ensures easy integration into compact assemblies, supported by UL and RoHS compliance for safety and environmental standards. Ideal for battery chargers, LCD monitors, cell phones, and more, this multilayer fuse guarantees durability, excellent moisture resistance, and reliable performance under demanding conditions. Order now for fast delivery and dependable protection.
Buy Bourns SF0603HI100M2 now and experience unmatched reliability and high inrush current protection in compact surface-mount design.
