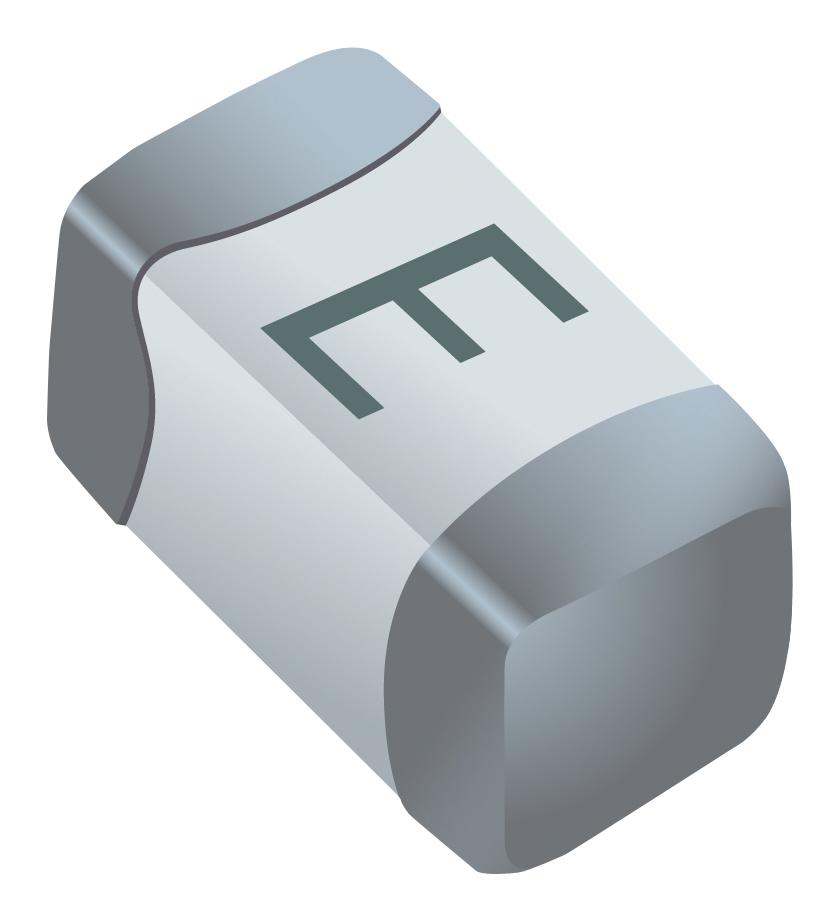

Bourns SF0603HI600M2 Surface Mount Fuse
The SF0603HI600M2 is a high inrush current withstand surface mount fuse designed for overcurrent protection in compact electronic devices. Featuring a 1608 (EIA 0603) miniature footprint, it offers excellent performance in portable memory, mobile phones, LCD monitors, and industrial controllers. UL 248-14 listed, RoHS compliant, and halogen-free, this multilayer SMD fuse provides reliable protection against power surges and short circuits, with a rated current of 6.00 amperes and a voltage rating of DC 32 V. Ideal for applications requiring durability and fast response to current overloads.
Bourns SF0603HI600M2 Surface Mount Fuse Specifications:
- Dimensions: 0.036 inches x 0.015 inches (0.91 mm x 0.38 mm)
- Rated Current: 6.00 A
- Resistance: 0.010 Ω typical
- Voltage Rating: DC 32 V
- Fusing Time: within 60 seconds at rated current
- Construction: Multilayer ceramic body with masking layer
- Operating Temperature: -55°C to +150°C
- Storage Conditions: -55°C to +150°C, Humidity: 40% to 75%
- Shelf Life: 2 years from manufacturing date
- Moisture Sensitivity Level: Class 6
- ESD Classification: HBM
- Packaging: Tape & Reel, 4,000 pieces per reel
- Solder Reflow Profile: Preheat 150°C-200°C, 60-120 seconds; Peak 260°C
- Wave Soldering: Suitable with max peak temperature 260°C
Buy the Buy Bourns SF0603HI600M2 Part Number SF0603HI600M2 Online
Order the Bourns SF0603HI600M2 surface mount fuse online today to ensure optimal protection against overcurrent and power surges in your electronics. Compact and RoHS compliant, this multilayer fuse is perfect for portable memory, cell phones, LCD monitors, industrial controllers, and more. With a rated current of 6.00 A and a voltage rating of DC 32 V, it offers quick response times and high reliability. Purchase now to enhance your device safety with a UL-listed, halogen-free fuse designed for fast, dependable protection.
Get Bourns SF0603HI600M2 today—built for durability, precision protection, and reliable inrush current handling for your electronic devices.
Frequently Asked Questions
Where can I buy Bourns SF0603HI600M2?
You can click on the BUY or RFQ button to purchase SF0603HI600M2 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SF0603HI600M2?
You can download the SF0603HI600M2 datasheet or visit the Bourns website for support.
Who is the manufacturer of SF0603HI600M2?
Bourns
