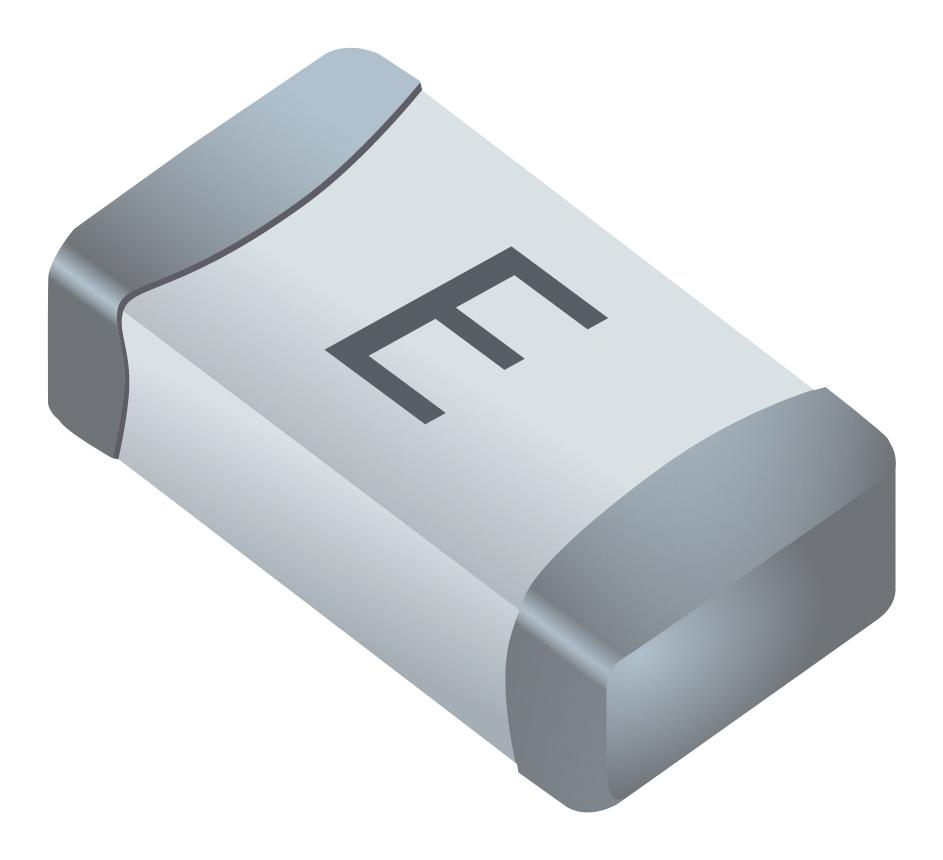

Bourns SF1206HI250M2 High Inrush Multilayer Fuse
The SF-1206HI250M-2 is a high inrush current multilayer surface mount fuse designed for automated protection in electronic devices. With a 3216 EIA 1206 footprint, it withstands high inrush currents, making it suitable for portable memory, cell phones, LCD monitors, rechargeable battery packs, and industrial controllers. UL 248-14 listed and RoHS compliant, this fuse features multilayer construction and surface mount packaging, providing reliable overcurrent protection for high-demand applications while ensuring easy assembly and compliance with environmental standards.
Bourns SF1206HI250M2 High Inrush Multilayer Fuse Specifications:
- Footprint: 3216 (EIA 1206)
- Construction: Multilayer
- Packaging: Tape & Reel, 3000 pcs per reel
- Rated Current: 1.0A to 8.0A (various models, e.g., 2.50A model rated at 0.065 Ω resistance)
- Resistance: Approx. 0.065 Ω for 2.50A model, measured at <10% rated current at 25°C
- Fusing Time: Within 60 seconds at rated current, Melting calculated at 1000% of current rating
- Voltage Rating: 32 V DC for 2.50A model, 63 V DC for 1.5A model
- Operating Temperature: -55°C to +150°C, Storage -55°C to +85°C
- Solder Reflow Profile: Preheat from 150°C to 200°C in 60–120 sec, Tpeak 260°C, Ramp rates 3°C/sec (up), 6°C/sec (down)
- Moisture Resistance: 10 cycles, No excessive corrosion, DCR change <+10%
- Certifications: UL Listed, RoHS compliant
- Application: Battery packs, cell phones, LCD monitors, digital cameras, industrial controllers, power tools
Buy the Buy Bourns SF-1206HIxxxM Series Part Number SF1206HI250M2 Online
Secure your electronic devices with the Bourns SF1206HI250M-2 high inrush multilayer fuse. This surface mount fuse offers excellent protection against overcurrent and inrush currents, making it ideal for portable electronics, industrial controls, and power management systems. UL listed and RoHS compliant, it features a 1206 footprint for easy installation, robust construction for high demand applications, and precise specifications for reliable performance. Purchase online today to enhance device safety with this trusted, high-quality fuse designed for modern electronic applications.
Order your Bourns Series SF1206HI250M2 high inrush multilayer fuse today and ensure reliable overcurrent protection for your electronic projects.
Frequently Asked Questions
Where can I buy Bourns SF1206HI250M2?
You can click on the BUY or RFQ button to purchase SF1206HI250M2 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SF1206HI250M2?
You can download the SF1206HI250M2 datasheet or visit the Bourns website for support.
Who is the manufacturer of SF1206HI250M2?
Bourns
