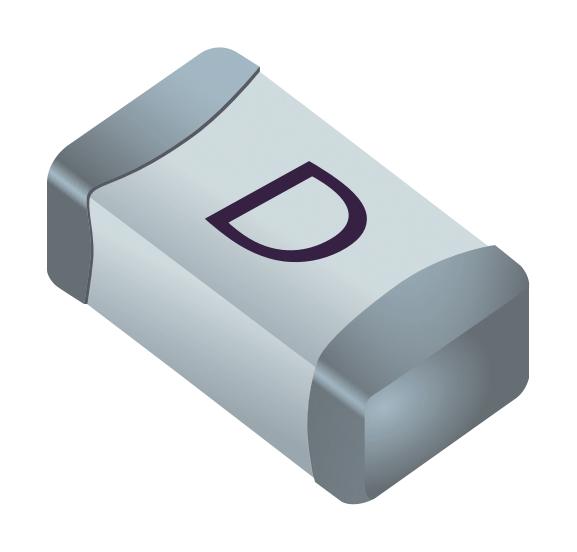

Bourns SF1206S175M2 Surface Mount Slow Blow Fuse
The SF-1206S175M-2 is a miniature slow blow surface mount fuse designed for overcurrent protection in compact electronic devices. It features multilayer SMD construction, complies with RoHS directives, and is halogen-free. Suitable for portable memory, LCD monitors, disk drives, MP3 players, and industrial controllers, it offers a fusing time of less than 5 seconds at 250% rated current. With UL 248-14 listing, high reliability, and surface mount packaging, this fuse is ideal for automation, battery management, and power supply applications, providing robust protection in compact formats.
Bourns SF1206S175M2 Surface Mount Slow Blow Fuse Specifications:
- Rated Current: 0.50 A to 8.00 A
- Resistance: Typical resistance varies with current, around 0.002 Ω at 0.50 A
- Fusing Time: Less than 5 seconds at 250% rated current
- Voltage Rating: DC 63 V (model dependent)
- Construction: Multilayer surface mount design, RoHS compliant, halogen free
- Dimensions: 3.2mm x 1.6mm, EIA 1206 size, suitable for surface mounting
- Packaging: Tape and reel, 3,000 pieces per reel
- Operating Temperature: -55°C to +125°C
- Storage Conditions: 5°C to 35°C, 40% to 75% humidity, shelf life 2 years
- Certifications: UL 248-14 listed, RoHS compliant, halogen free
- Application: Overcurrent protection in memory, LCD, disk drives, MP3, BMS, industrial controllers
- Surge withstand: Suitable for automation, power tools, battery chargers
- Compliance: RoHS Directive 2011/65/EU, Halogen free
- Design: Multilayer construction for reliability, surface mount packaging for automated assembly
Buy the Bourns Series SF-1206S Fuse: SF1206S175M2
Order the Bourns surface mount slow blow fuse SF1206S175M2 online today and ensure reliable overcurrent protection for your electronics. This UL listed, RoHS compliant fuse with multilayer SMD design offers quick response within 5 seconds at 250% rated current, making it ideal for compact devices like memory modules, LCD monitors, disk drives, and industrial controllers. Its surface mount packaging ensures easy installation and compatibility with automated assembly processes, delivering high reliability and safety for power supply and control systems in various applications.
Buy Bourns SF1206S175M2 now and experience unmatched reliability and performance in overcurrent protection for your electronic devices.
