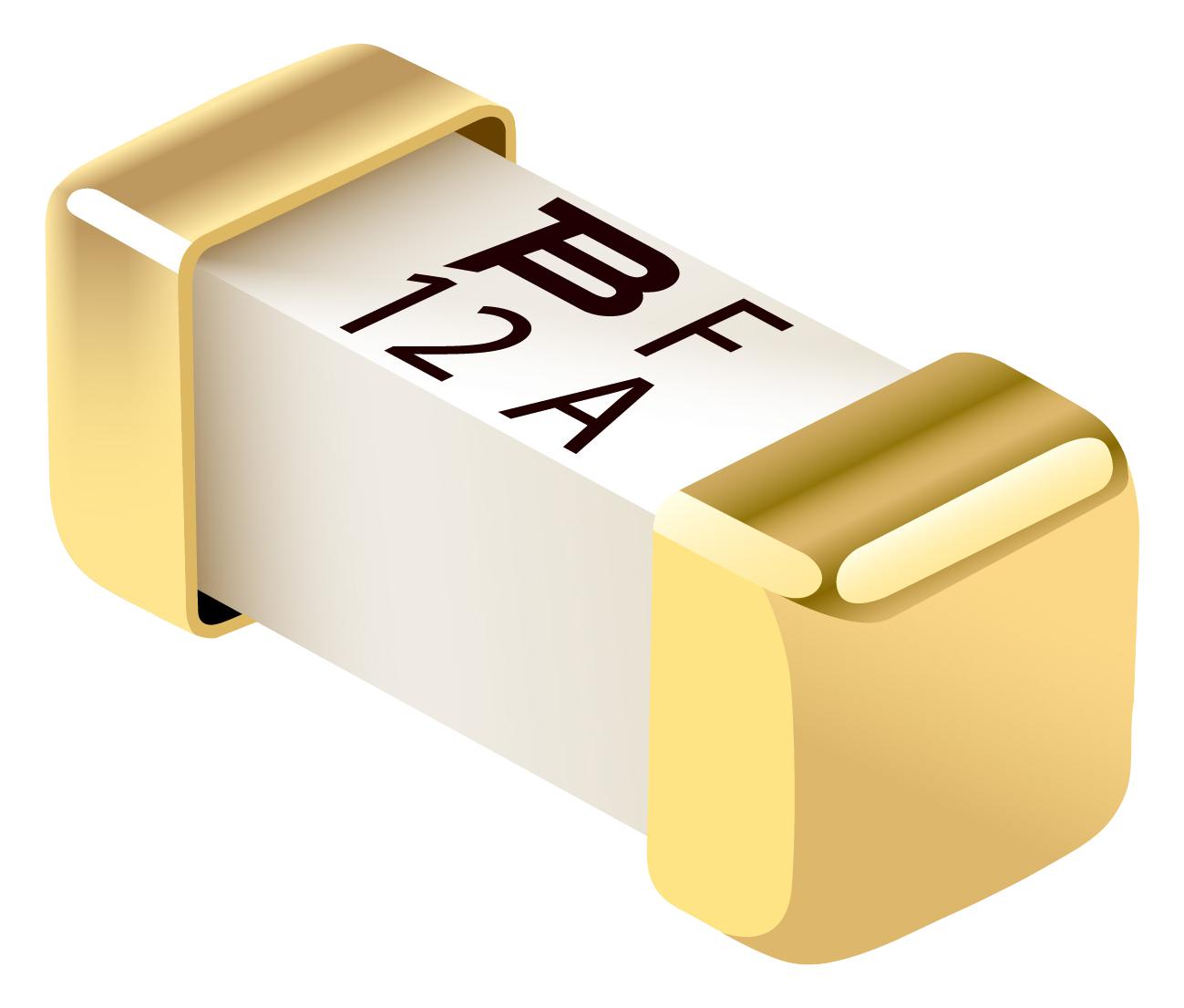

Bourns SF2410F2500T2 Fast Acting SMD Fuse
The Bourns SF-2410F-T Series comprises fast-acting surface mount fuses designed for overcurrent protection in industrial and electronic applications. Featuring a ceramic tube design for quick fusing speed, and EIA 2410 (6125 metric) footprint, these UL listed, RoHS compliant, halogen-free fuses support automated surface-mount assembly. They operate within -55 °C to +125 °C, have ratings from 12A to 25A, and are suitable for power supplies, PC servers, LCD monitors, and game consoles, ensuring reliable circuit protection in demanding environments.
Bourns SF2410F2500T2 Fast Acting SMD Fuse Specifications:
- Operating Temperature: -55 °C to +125 °C
- Storage Conditions: -55 °C to +125 °C
- Humidity Range: 20 % to 70 %
- Shelf Life: 2 years from manufacturing date
- Moisture Sensitivity Level: Class 6
- ESD Classification: Not specified
- Construction: Ceramic tube with gold-plated brass end caps
- Physical Dimensions: Diameter 1.75 mm, Length varies with model (e.g., 6.102 mm for 12A)
- Rated Current: 12A, 15A, 20A, 25A
- Voltage Rating: 50A at 65 VAC/DC, 200A at 86 VAC/DC, 300A at 24 VDC
- Resistance: 0.0045-0.002 measured at rated current
- Certification: UL File Number E198545
- Packaging: 1,000 pieces per reel
- Soldering Profile: Preheat 150°C-200°C for 60-180 sec, Peak Temp 235°C ±5°C, Dwell time 54-59 sec
- Reflow Profile: Ramp rates up to 5°C/sec, Peak temperature 235°C ±5°C
- Application: Power supplies, PC servers, LCD backlights, game consoles
- Compliance: RoHS Directive 2015/863, halogen free, UL-listed
Buy the Bourns SF-2410F-T Series – Reliable Fast Acting SMD Fuses for Industrial Applications
Purchase the Bourns SF-2410F-T Series fast-acting surface-mount fuses online today to benefit from quick circuit protection, high reliability, UL listing, RoHS compliance, and ease of automated assembly. Designed for demanding power supplies, LCD monitors, gaming consoles, and industrial electronics, these ceramic tube fuses provide fast response to overcurrent conditions, ensuring safety and durability. Order now and enhance your electronic systems with trusted circuit protection components that meet stringent quality standards.
Buy Bourns SF-2410F-T Series fast-acting surface-mount fuses now and ensure dependable overcurrent protection in your electronic devices.
Frequently Asked Questions
Where can I buy Bourns SF2410F2500T2?
You can click on the BUY or RFQ button to purchase SF2410F2500T2 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SF2410F2500T2?
You can download the SF2410F2500T2 datasheet or visit the Bourns website for support.
Who is the manufacturer of SF2410F2500T2?
Bourns
