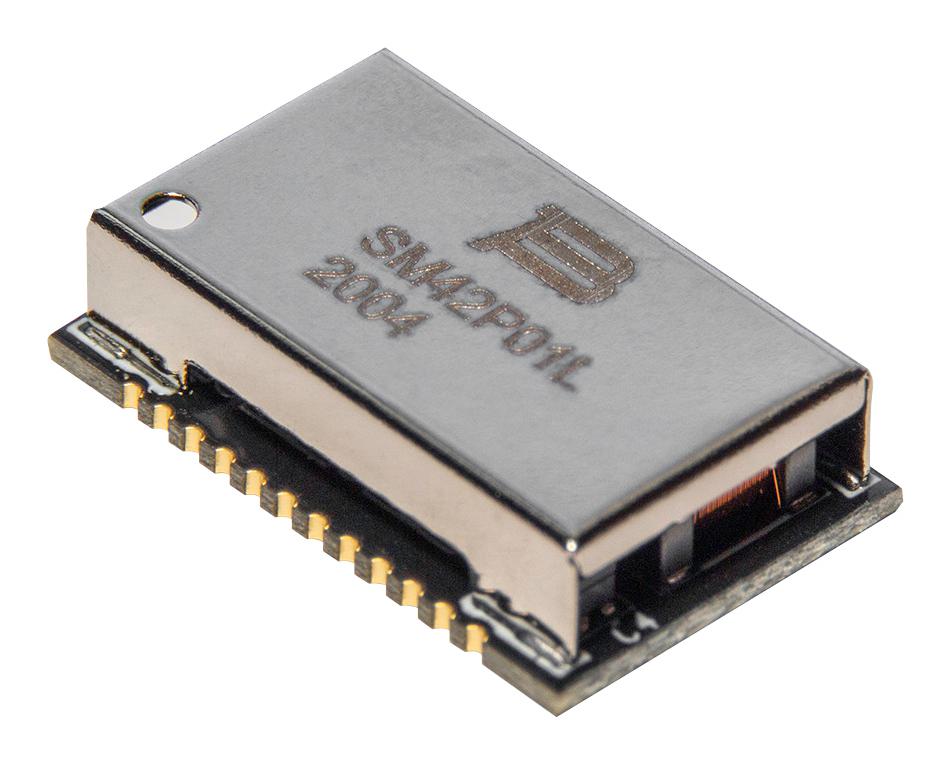

Bourns SM42P01EL Ethernet Transformer Module
The Bourns SM42PO1EL is a high-performance 1 / 2.5/5 GbE Chip LAN Transformer Module designed for Ethernet applications. Compatible with IEEE 802.3 standards, it supports 1G, 2.5G, and 5G BASE-T networks, including PoE+ functionality, making it suitable for diverse high-speed networking environments. The module operates within an expanded temperature range of -40°C to +85°C, ensuring reliable performance in harsh conditions. RoHS compliant and halogen-free, this transformer module offers excellent electrical characteristics, low insertion loss, and high isolation, essential for modern industrial and commercial Ethernet systems.
Bourns SM42P01EL Ethernet Transformer Module Specifications:
- Inductance: 230 pH min. @ 100 kHz, 0.1 V
- Operating Temperature: -40°C to +85°C
- RoHS compliant and halogen free
- Supported Ethernet speeds: 1G, 2.5G, 5G BASE-T
- PoE+ Current: 600 mA
- Electrical specifications include insertion loss, return loss, cross talk, and high-pot testing at 1500 Vac
- Packaging: Tape & Reel with 800 pcs./reel
- Dimensions: Length varies with packaging, typical dimensions include widths around 12.99 mm, height approx. 2.90 mm
- Reflow soldering with max 3 times reflow; preheating up to 250°C for 10–20 sec
- Designed for industrial environments with temperature resilience and compliance to RoHS standards
Buy the Buy Bourns SM42P01EL Part Number SM42P01EL Online
Purchase the Bourns SM42P01EL Ethernet transformer module online today and upgrade your network infrastructure. Designed for high-speed, industrial-grade Ethernet applications supporting 1G, 2.5G, and 5G BASE-T with PoE+ capability, it ensures robust performance across a broad temperature range of -40°C to +85°C. RoHS compliant and halogen-free, this module offers low insertion loss, excellent electrical isolation, and reliability necessary for modern networking equipment. Order now to secure quick delivery and dependable connectivity in your projects.
Order your Bourns SeriesSM42P01EL Ethernet transformer module today and enhance your high-speed network with reliable PoE+ support in demanding environments.
Frequently Asked Questions
Where can I buy Bourns SM42P01EL?
You can click on the BUY or RFQ button to purchase SM42P01EL from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SM42P01EL?
You can download the SM42P01EL datasheet or visit the Bourns website for support.
Who is the manufacturer of SM42P01EL?
Bourns
