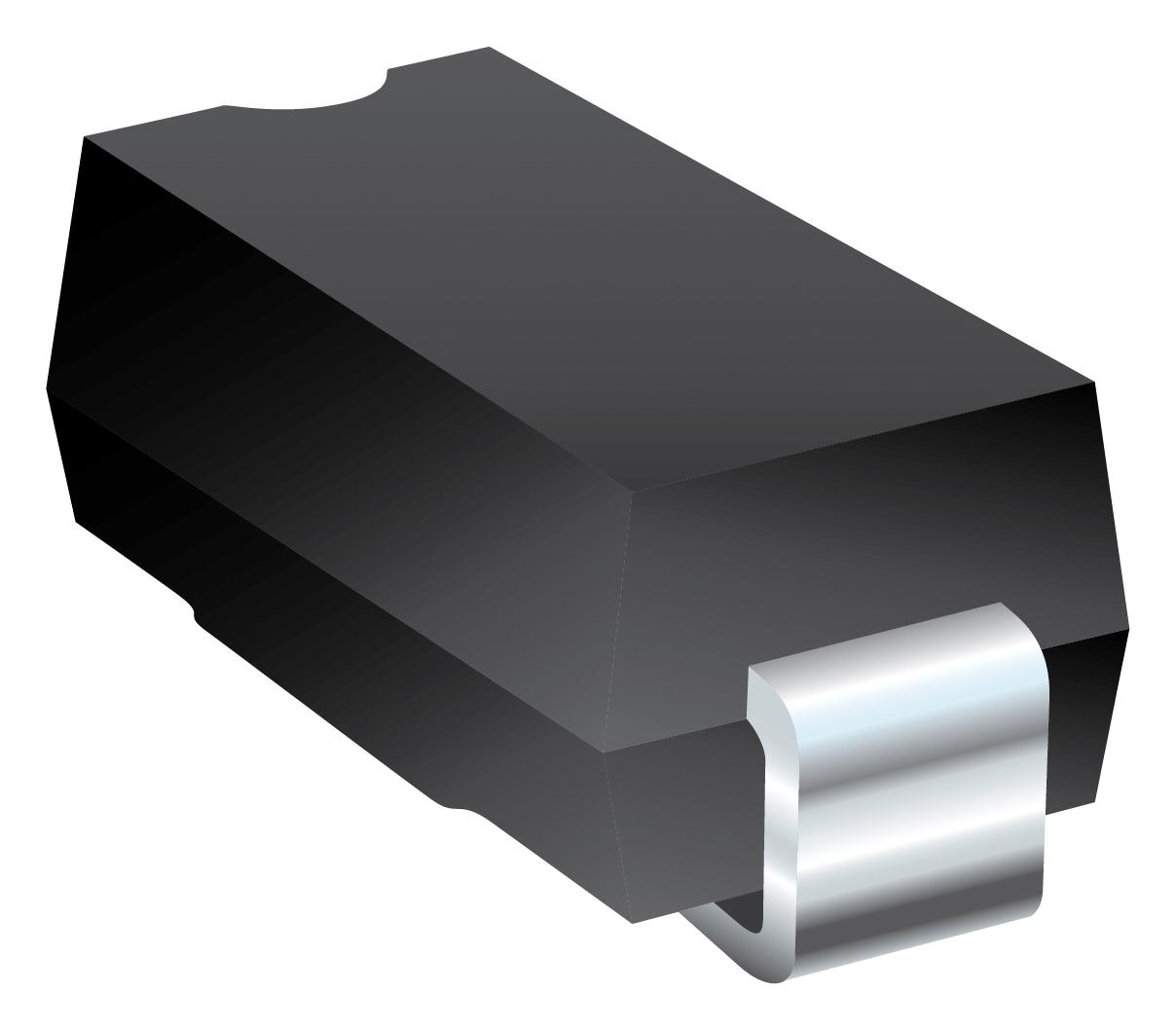

Bourns SMA6J18A Surge Protector Diode
The Bourns SMA6J series transient voltage suppressor diode offers reliable, high-energy surge protection in a compact SMAb package designed for surface mount applications. With a working peak reverse voltage from 5 V to 43 V, these diodes provide fast response times less than 1.0 picosecond from 0 V to breakdown voltage, ensuring swift protection of power lines, data interfaces, and sensitive electronics. Ideal for telecom, industrial, computer, and consumer electronic applications, they support overvoltage transient suppression with a power dissipation capacity of 600 watts, and are RoHS compliant, making them a robust choice for surge and ESD protection needs.
Bourns SMA6J18A Surge Protector Diode Specifications:
- Surface Mount SMAb package
- Protection of power buses and interfaces
- Standoff Voltage: 5 to 43 volts
- Power Dissipation: 600 Watts
- Peak Forward Surge Current: 40 Amps (8.3 ms)
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- RoHS compliant
- Case Molded plastic per UL Class 94V-0
- Polarity: Cathode band indicates unidirectional device, no band indicates bidirectional
- Physical Dimensions (approximate): A: 3.99-4.50 mm, B: 2.54-2.79 mm, C: 1.25-1.65 mm, D: 0.15-0.31 mm, E: 4.93-5.28 mm, G: 1.98-2.29 mm, H: 0.76-1.52 mm
- Reel Packaging: 5,000 units per reel, compliant with EIA-481-C standard
- ESD Classification: 3B, Moisture Sensitivity Level 1
Buy the Bourns Series SMA Transient Voltage Suppressor: SMA6J18A
Experience reliable transient voltage suppression with Bourns SMA6J18A series diodes. Designed for fast response, high power dissipation of 600W, and surface mount convenience, these ROHS-compliant devices ensure your electronics are protected against overvoltage transients and ESD events. Perfect for telecom, industrial, and consumer electronics, they offer versatility, durability, and easy handling with a compact package. Purchase online today to secure high-quality surge protection for your sensitive electronic systems and prevent damage from voltage surges effectively.
Get Bourns SMA6J18A today—built for surge protection and precision in electronic circuits.
Frequently Asked Questions
Where can I buy Bourns SMA6J18A?
You can click on the BUY or RFQ button to purchase SMA6J18A from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SMA6J18A?
You can download the SMA6J18A datasheet or visit the Bourns website for support.
Who is the manufacturer of SMA6J18A?
Bourns
