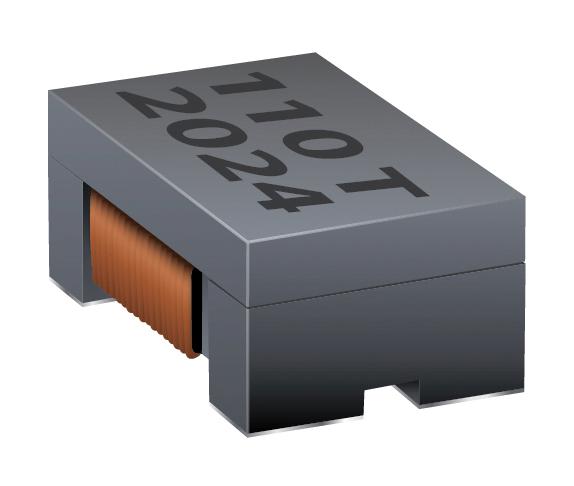

Bourns SRF4530AG201Y Common Mode Chip Inductor
The Bourns SRF4530AG is a common mode chip inductor designed with shielded, bifilar wound construction, providing low radiation and high efficiency for electronic circuits. It is compliant with IEC-AEC-0200 standards, RoHS, and halogen-free. Suitable for filtering applications, it features a rated voltage of 50 VDC, inductance of 200 μH at 100 kHz, impedance characteristics, and operates within -55°C to +150°C temperature range. The inductor's ferrite core and enameled copper wire ensure durability and reliable performance in high-temperature environments, making it ideal for noise suppression and signal integrity in various electronic devices.
Bourns SRF4530AG201Y Common Mode Chip Inductor Specifications:
- Inductance: 200 μH @ 100 kHz
- Rated Voltage: 50 VDC
- Impedance: Typ. 45 Ω, Max. 50 Ω at 100 kHz
- DCR: Not specified
- Insulation Resistance: 10 megohms min. @ 50 VDC
- Core Material: Ferrite
- Wire Material: Enameled copper
- Terminal Finish: Au
- Temperature Range: -55°C to +150°C
- Packaging: 500 pcs per reel
- Physical Dimensions: Diameter approximately 2.6 mm, height about 1.65 mm
- Soldering Profile: Max. 250°C peak temperature, 30 sec. max., 60-150 sec. above 217°C
- Compliance: IEC-AEC-0200, RoHS, Halogen free
- Applications: Noise filtering, signal suppression in electronic circuits
Buy the Bourns Series SRF4530AG Common Mode Chip Inductor: SRF4530AG201Y
Order the Bourns SRF4530AG201Y common mode chip inductor online today and elevate your electronic design with high-quality noise suppression. This shielded, ferrite-core inductor offers 200 μH inductance, rated at 50 VDC and suitable for high-temperature environments from -55°C to +150°C. Its RoHS compliance and halogen-free construction ensure environmental safety. Packaged with 500 pieces per reel, its durable design and proven specifications provide consistent performance in electronic circuits, making it an essential component for reliable signal filtering and EMI suppression.
Buy Bourns SRF4530AG201Y now and experience unmatched reliability and performance in noise filtering and signal integrity applications.
Frequently Asked Questions
Where can I buy Bourns SRF4530AG201Y?
You can click on the BUY or RFQ button to purchase SRF4530AG201Y from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRF4530AG201Y?
You can download the SRF4530AG201Y datasheet or visit the Bourns website for support.
Who is the manufacturer of SRF4530AG201Y?
Bourns
