Bourns SRN2009T1R5M Power Inductor
The SRN2009T1R5M is a semi-shielded power inductor designed for high-frequency applications such as DC/DC converters, power supplies, and portable devices. It features low profile construction with a maximum height of 0.95 mm, inductance values ranging from 0.33 to 10 μH, and rated currents up to 2.1A. Built with ferrite cores and enameled copper wire, it complies with RoHS and halogen-free standards, offering reliable performance in compact electronic circuits and wearable technology.
Bourns SRN2009T1R5M Power Inductor Specifications:
- Inductance Range: 0.33 to 10 μH
- Rated Current: Up to 2.1A
- Height: Max 0.95 mm
- Core Material: Ferrite
- Wire: Enameled copper
- RoHS Compliant and Halogen Free
- Operating Temperature: -40°C to +125°C
- Soldering: Preheating at 260°C for 10 seconds, reflow soldering, natural cooling
- Packaged: 2000 pcs per reel
- Insulation Material: Magnetic epoxy resin
- Tolerance: Typically ±20%
- Application: DC/DC converters, power supplies, wearable devices, HDDs, SSDs

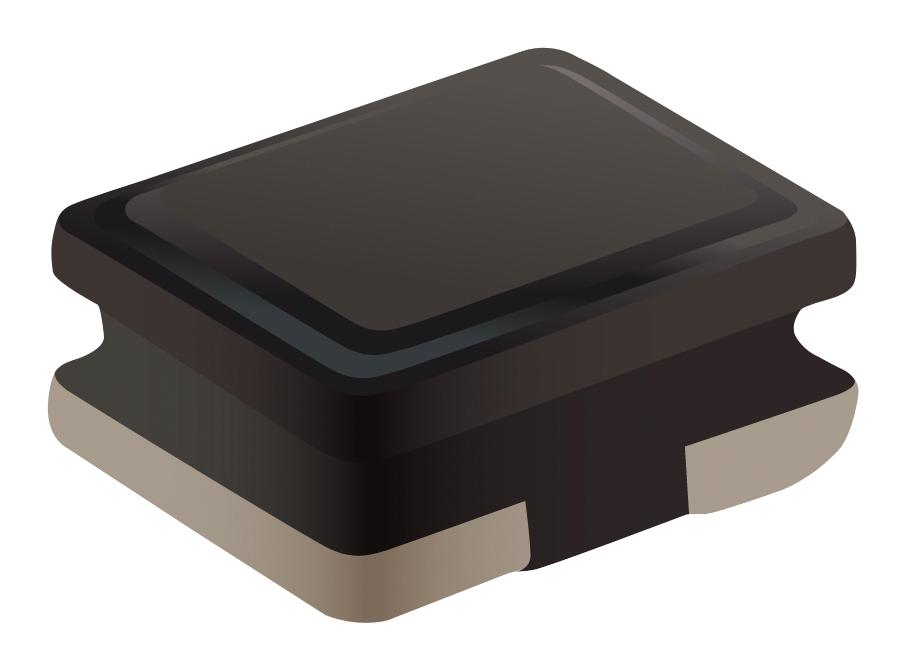

Buy the Buy Bourns SRN2009T Series Power Inductor Part Number SRN2009T1R5M Online
Secure your Bourns SRN2009T1R5M power inductor online today. Perfect for high-frequency power supply circuits, wearable electronics, and SSDs, this inductor offers excellent inductance range, high rated current, and small form factor. Manufactured with premium ferrite core and enameled copper wire, it ensures durability and low profile design. With RoHS compliance and halogen-free construction, it’s ideal for modern electronics requiring reliable magnetic components. Purchase now for fast delivery and trusted quality to meet your technical needs.
Order your Bourns Series SRN2009T1R5M power inductor today and ensure compact, reliable performance for high-frequency electronic applications.
Frequently Asked Questions
Where can I buy Bourns SRN2009T1R5M?
You can click on the BUY or RFQ button to purchase SRN2009T1R5M from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRN2009T1R5M?
You can download the SRN2009T1R5M datasheet or visit the Bourns website for support.
Who is the manufacturer of SRN2009T1R5M?
Bourns
