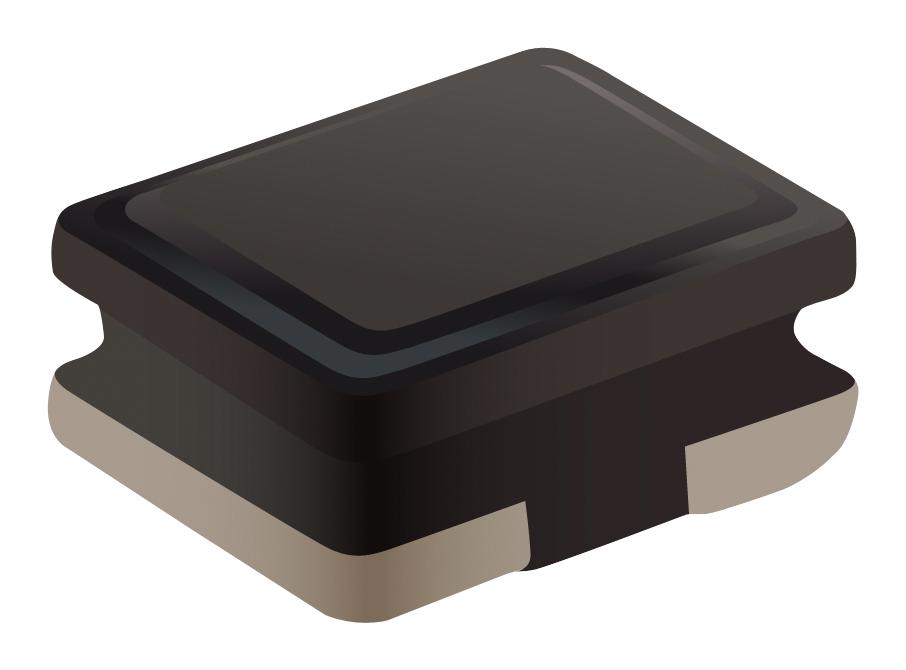

Bourns SRN2009T4R7M Power Inductor
The SRN2009T4R7M is a semi-shielded power inductor designed for high-current applications in power supplies, DC/DC converters, and LCD displays. Featuring RoHS compliance and halogen-free materials, it offers an inductance value of 47 µH, rated current up to 15 A, and a low profile of 0.95 mm maximum height. Its ferrite core and enameled copper wire construction ensure stability and efficiency across a temperature range of -40°C to +125°C. Ideal for compact, high-performance electronic assemblies, this inductor provides reliable inductance, low magnetic interference, and thermal stability.
Bourns SRN2009T4R7M Power Inductor Specifications:
- Inductance: 47 µH
- Rated Current: 15 A
- Height: Max 0.95 mm
- Core Material: Ferrite
- Wire: Enameled copper
- Temperature Range: -40°C to +125°C
- RoHS compliant and halogen free
- Packaging: 2000 pcs per reel
- Material: Magnetic epoxy resin coating
- Soldering Profile: Preheating at 260°C for 10 sec max, then at 245°C for 20-40 sec, natural cooling
- Dimensions: Approximate diameter 8.02 mm
- Application: Power supplies, DC/DC converters, LCD displays
- Compliance: RoHS Directive 2002/95/EC, Recast 2011/65/EU
Buy the Bourns Series SRN2009T Power Inductor: SRN2009T4R7M
Order the Bourns SRN2009T4R7M power inductor online today for efficient high-current performance in your electronic designs. Its low profile, high rated current, and RoHS compliance make it ideal for power supplies, DC/DC converters, LCD displays, and other compact assemblies. With a 47 µH inductance, maximum 15 A rated current, and ferrite core construction, it ensures low magnetic interference and thermal stability across wide temperature ranges. Purchase now for fast delivery and dependable operation in your next project.
Buy Bourns SRN2009T4R7M now and experience unmatched reliability and performance in high-current, compact electronic applications.
Frequently Asked Questions
Where can I buy Bourns SRN2009T4R7M?
You can click on the BUY or RFQ button to purchase SRN2009T4R7M from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRN2009T4R7M?
You can download the SRN2009T4R7M datasheet or visit the Bourns website for support.
Who is the manufacturer of SRN2009T4R7M?
Bourns
