Bourns SRN60286R2M Power Inductor
The SRN6028 series consists of semi-shielded power inductors designed for a wide range of electronic applications such as DC/DC converters, notebooks, digital video cameras, cellphones, and LCD displays. These inductors feature RoHS compliance and halogen-free materials, with inductance values from 0.90 to 100 µH, rated currents up to 4.6 A, and operating temperatures from -40°C to +125°C. The ferrite core and enameled copper wire construction ensure high efficiency and reliable performance in compact power supply modules.
Bourns SRN60286R2M Power Inductor Specifications:
- Inductance: 0.90 to 100 µH
- Tolerance: ±30%
- Core Material: Ferrite
- Wire Material: Enameled copper
- Operating Temperature: -40°C to +125°C
- Soldering Profile: Preheat max 100°C for 10sec, natural cooling, min 60s soldering time
- Resistance to Solder Heat: 260°C for 10 sec
- Rated Current: Up to 4.6 A
- Inductance drop: 30% at Isat
- Packaging: 1000 pcs per reel
- RoHS compliant and halogen free
- Dimensions: Length varies, typical size around 6.4 mm x 6.4 mm with height about 3.4 mm
- Cerifications: RoHS, Halogen Free

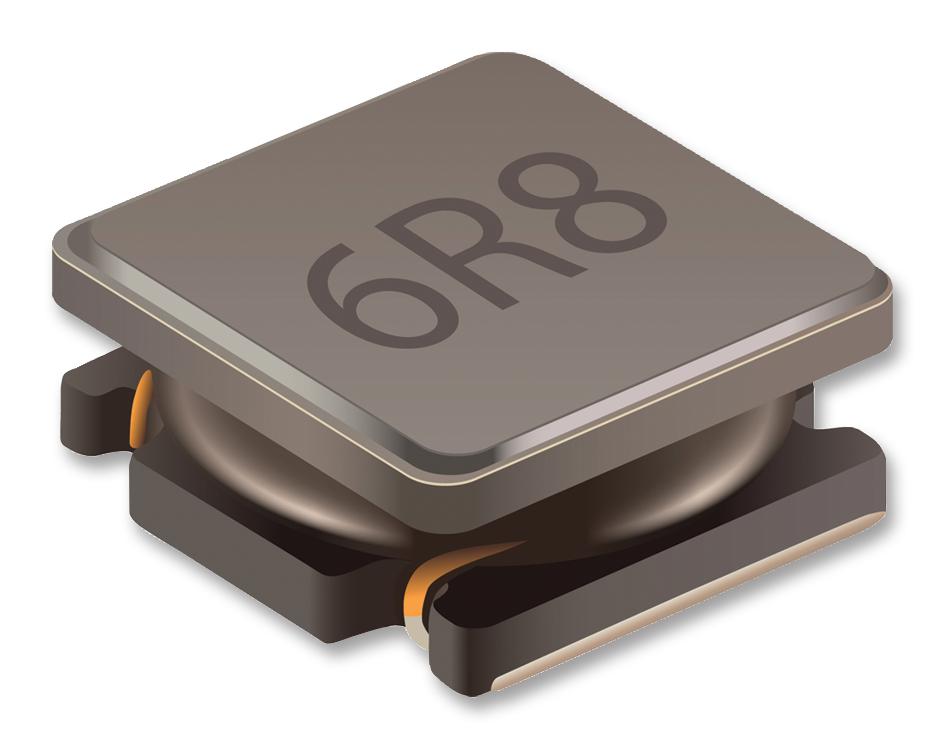

Buy the Bourns SRN6028 – Reliable Power Inductors for Industrial Applications
Explore the Bourns SRN6028 series power inductors, ideal for compact electronic systems, including DC/DC converters, notebooks, and mobile devices. These inductors feature a ferrite core, enameled copper wire, and RoHS compliance, ensuring high efficiency and sustainability. Suitable for demanding applications, they support high current loads up to 4.6 A, with excellent resistance to solder heat and thermal stability over -40°C to +125°C. Purchase online today for reliable performance in your power supply designs.
Get Bourns SRN6028 today—built for precision and long-lasting durability in power management and electronic devices.
Frequently Asked Questions
Where can I buy Bourns SRN60286R2M?
You can click on the BUY or RFQ button to purchase SRN60286R2M from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRN60286R2M?
You can download the SRN60286R2M datasheet or visit the Bourns website for support.
Who is the manufacturer of SRN60286R2M?
Bourns
