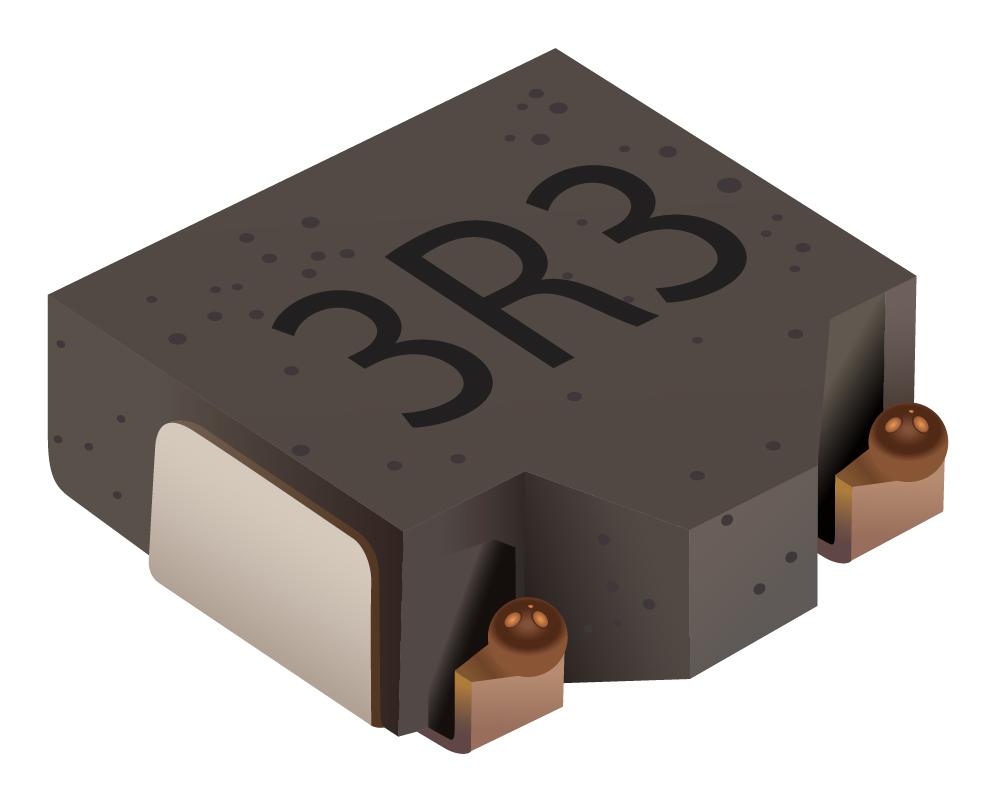

Bourns SRP03103R3K Power Inductors
The shielded power inductors are designed with a metal alloy powder core, offering high saturation current and low buzz noise for reliable power applications. They feature RoHS compliance, halogen-free materials, and flat wire construction, providing consistent inductance and thermal stability across operating temperatures from -40°C to +125°C. These inductors are suitable for various high-frequency power circuits, with dimensions optimized for compact designs. They are packaged in reels for automated manufacturing, ensuring ease of handling and installation in electronic devices requiring efficient energy storage and filtering.
Bourns SRP03103R3K Power Inductors Specifications:
- Core Material: Metal alloy powder
- Inductance Range: 0.47 µH to 4.70 µH
- Inductance Tolerance: ±10%
- Maximum Saturation Current: up to 7.96 A depending on model
- Operating Temperature: -40°C to +125°C
- Temperature Rise: Included in temperature range
- Maximum Peak Temperature: 260°C with reflow soldering profile
- Peak Temperature: 260°C max, Max time above 217°C: 60-150 seconds
- Package: Reel with 4000 pcs, 13-inch reel diameter
- Material: Sn (tin) terminal finish, enameled copper wire
- RoHS and Halogen Free Compliance: Yes
- Moisture Sensitivity Level: 1
- Rated Voltage: 50V
- Soldering Profile: Max Peak Temperature 260°C
Buy the Buy Bourns Shielded Power Inductors Part Number SRP0310-3R3K Online
Experience reliable performance with Bourns Power Inductors, designed for high saturation current and low noise in compact power circuits. These shielded inductors feature RoHS and halogen-free materials, ensuring safety and environmental compliance. With a robust metal alloy core and flat wire design, they deliver high efficiency, thermal stability, and consistent inductance across temperatures from -40°C to +125°C. Packaged in reels for easy automation, these inductors are ideal for energy storage, filtering, and power management in demanding electronic systems, providing durability and stability for long-term operation.
Get Bourns SRP0310-3R3K today—designed for high current and thermal stability in power supply applications.
Frequently Asked Questions
Where can I buy Bourns SRP03103R3K?
You can click on the BUY or RFQ button to purchase SRP03103R3K from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRP03103R3K?
You can download the SRP03103R3K datasheet or visit the Bourns website for support.
Who is the manufacturer of SRP03103R3K?
Bourns
