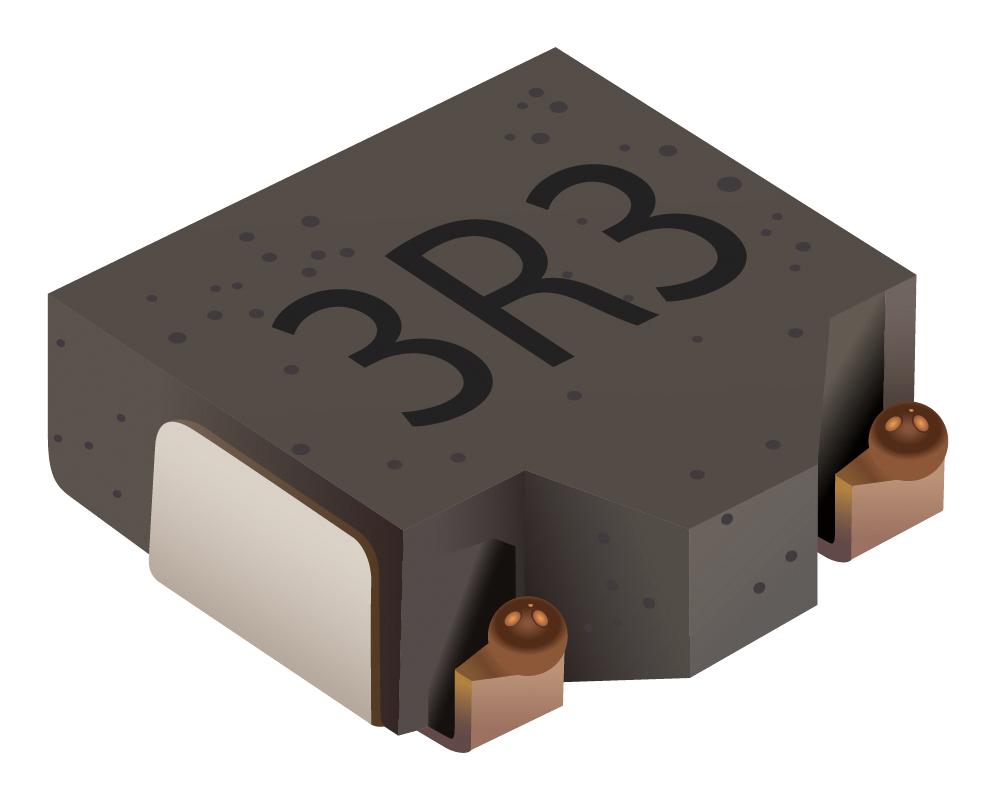

Bourns SRP03201R0K Shielded Power Inductor
The SRP0320-R0K series shielded power inductors by Bourns feature a metal alloy powder core with shielded construction, high saturation current, and low buzz noise. Designed for use in power supply filtering, DC/DC converters, and industrial equipment, they are RoHS compliant and halogen-free. These surface-mount inductors operate efficiently at temperatures from -40°C to +125°C, with specifications emphasizing high current capacity, low DCR, and stable inductance performance at various frequencies, making them suitable for demanding electronic applications requiring reliable magnetic components.
Bourns SRP03201R0K Shielded Power Inductor Specifications:
- Inductance: 0.47 μH to 470 μH
- Saturation Current (Isat): 12.0 A to 14.6 A
- DCR: 2.2 mΩ to 25.2 mΩ
- Operating Temperature: -40 °C to +125 °C
- Maximum Voltage: 50 V
- Core Material: Metal alloy powder
- Construction: Shielded, flat wire
- Moisture Sensitivity Level: 1
- Reflow Peak Temperature: 260 °C
- Storage Temperature: -40 °C to +125 °C
- Dimensions: Length 3.4 mm, Width 3.0 mm, Height approximately 2.0 mm
- RoHS compliant and halogen free
- Suitable for commercial and industrial electronic applications requiring high current inductors with low DCR and stable magnetic properties.
Buy the Buy Bourns SRP0320 Series Part Number SRP0320-R0K Online
Purchase the Bourns SRP0320 series shielded power inductor online today to ensure your electronic projects benefit from high saturation current, low noise operation, and RoHS compliance. These inductors are designed for power supplies, DC/DC converters, and industrial equipment, offering excellent performance at high temperatures with a compact surface-mount design. With robust construction and precise specifications, they provide stability and reliability for demanding applications. Ordering online guarantees quick delivery and access to trusted, high-quality magnetic components for your engineering needs.
Order your Bourns SRP0320-R0K series shielded power inductor today and enhance your power management projects with reliable magnetic components.
Frequently Asked Questions
Where can I buy Bourns SRP03201R0K?
You can click on the BUY or RFQ button to purchase SRP03201R0K from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRP03201R0K?
You can download the SRP03201R0K datasheet or visit the Bourns website for support.
Who is the manufacturer of SRP03201R0K?
Bourns
