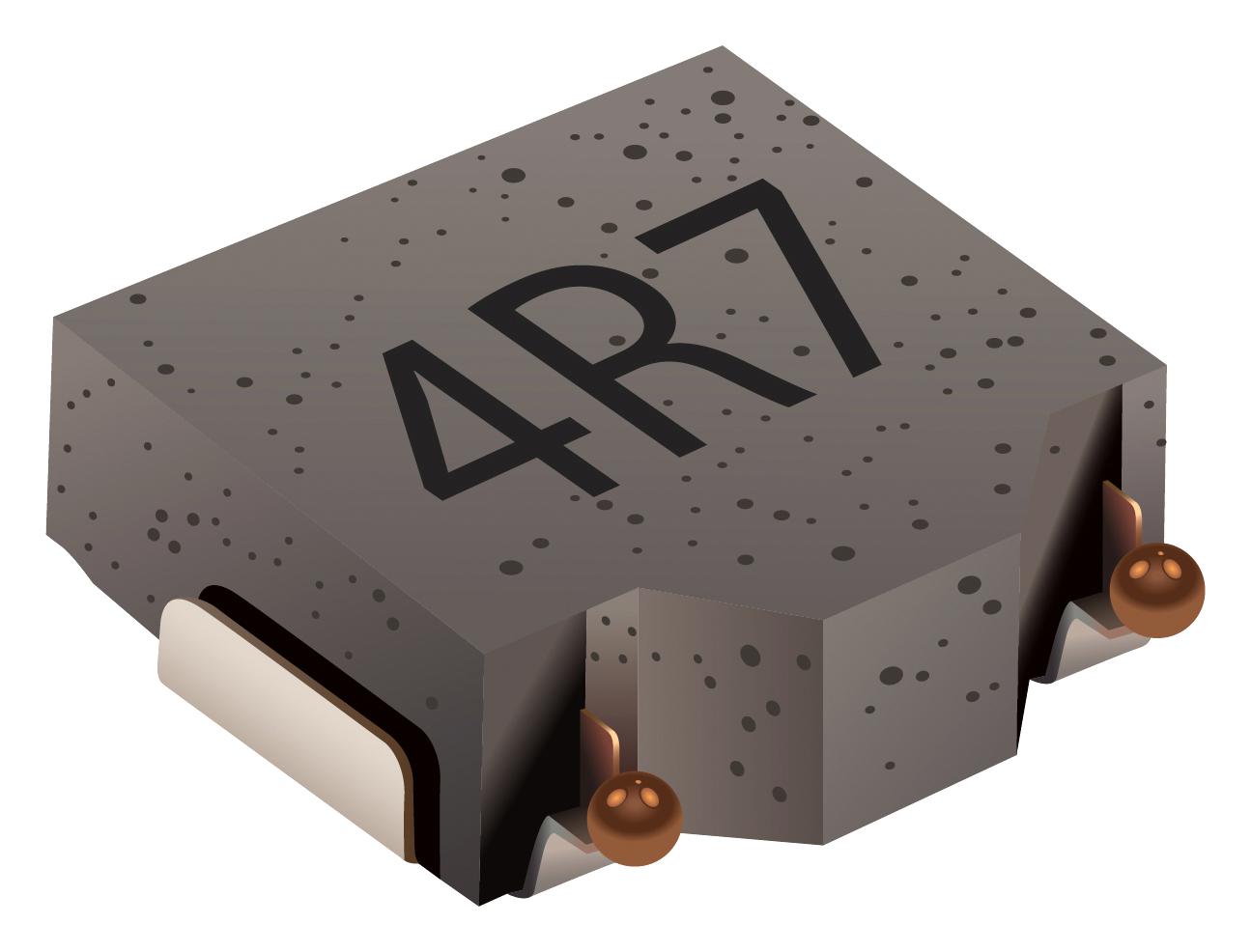

Bourns SRP0412100K Power Inductor
The SRP0412 Power Inductor series by Bourns features shielded construction, a metal alloy powder core, high saturation current, and low buzz noise. These inductors are RoHS compliant and halogen-free, suitable for power supplies and DC-DC converter applications. Designed for high-frequency stability, they support operating temperatures from -40°C to +125°C and a rated voltage of 50V. Compact and reliable, they include various inductance options, dimensions, and electrical specifications, making them ideal for demanding electronic circuits requiring minimal noise and high saturation capabilities.
Bourns SRP0412100K Power Inductor Specifications:
- Inductance range: 0.47 μH to 10 μH
- Operating temperature: -40°C to +125°C
- Rated voltage: 50 V
- Saturation current: up to 29.5 A
- Shielded construction for reduced noise
- RoHS compliant and halogen free
- Peak temperature: 260°C for soldering, max. 30 sec.
- Material: Metal alloy powder core
- Dimensions vary by model, typical size approximately 4.4 mm x 4.4 mm
- Temperature rise: 40°C at rated Irms
- Inductance drop: 30% at Isat
- Soldering profile: peak temperature 260°C, max 60-150 sec above 217°C
Buy the Bourns Series SRP Power Inductor: SRP0412-100K
Purchase the Bourns SRP0412 power inductor online today to enhance your electronic circuit's efficiency and stability. With shielded construction, high saturation current, and RoHS compliance, this inductor is suitable for power supplies, DC-DC converters, and demanding applications. Its compact size and reliable performance are ideal for space-constrained designs requiring minimal noise and high thermal stability. Enjoy quick delivery, easy ordering, and confidence in quality with every purchase. Perfect for engineers seeking durable, high-performance inductors for advanced electronic systems.
Order your Bourns Series SRP0412 100K power inductor today and ensure your projects benefit from high saturation current and reliable noise reduction.
Frequently Asked Questions
Where can I buy Bourns SRP0412100K?
You can click on the BUY or RFQ button to purchase SRP0412100K from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRP0412100K?
You can download the SRP0412100K datasheet or visit the Bourns website for support.
Who is the manufacturer of SRP0412100K?
Bourns
