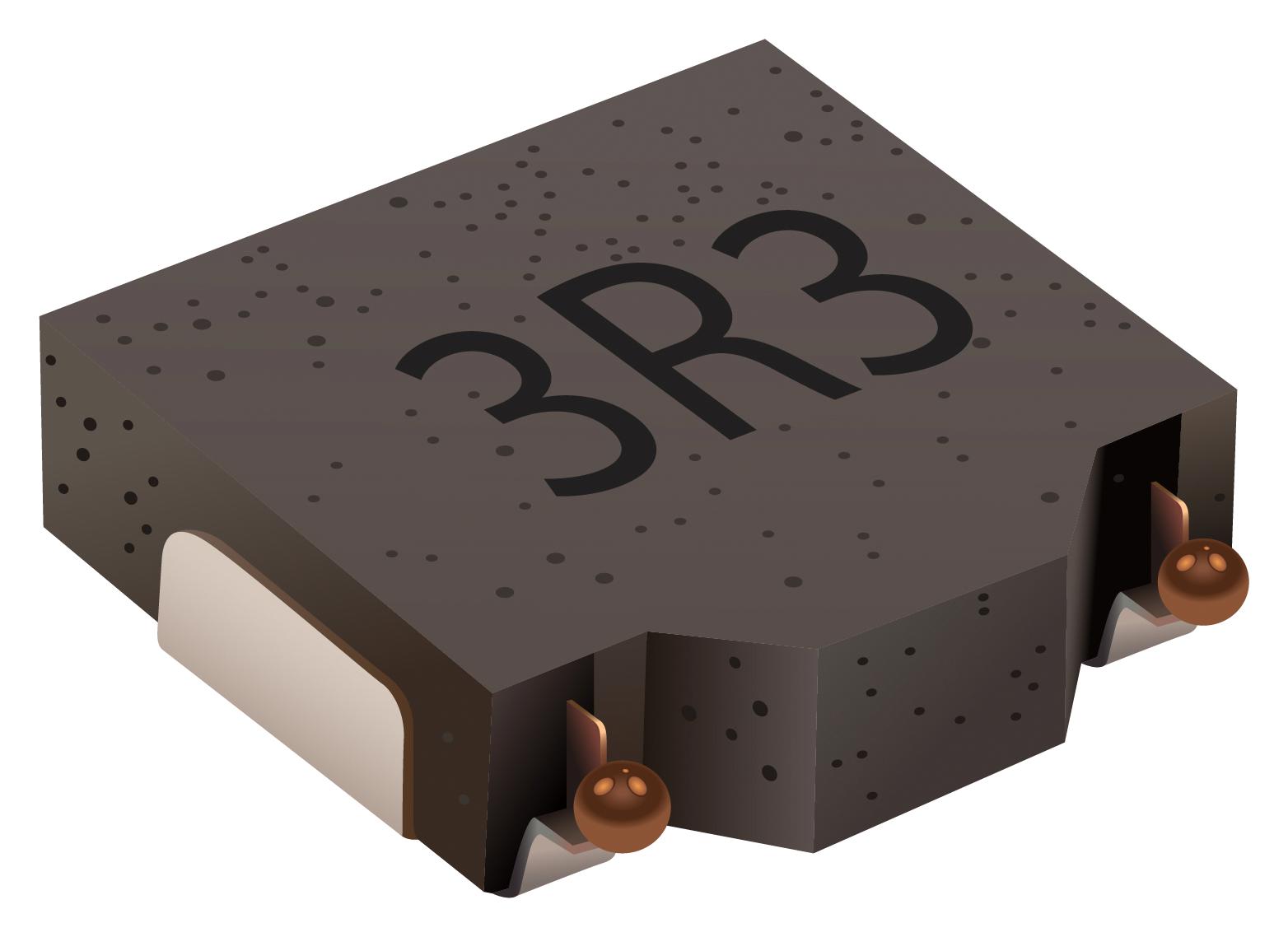

Bourns SRP05203R3K Power Inductor
The Bourns SRP0520 Series is a shielded power inductor featuring a metal alloy powder core, high saturation current, and low buzz noise. Designed for high efficiency in compact electronic applications, it offers RoHS compliance and halogen-free construction. Ideal for switching power supplies, DC/DC converters, and RF circuitry, this series provides reliable inductance with a flat wire design, operating efficiently between -55°C to +125°C. Its robust construction ensures minimal losses and electromagnetic interference, making it suitable for demanding electronics where space and performance are critical.
Bourns SRP05203R3K Power Inductor Specifications:
- Inductance Range: 0.47 µH to 10.0 µH
- Q Factor: up to 120%
- Saturation Current: 12.5 A to 152 A
- Operating Temperature: -55°C to +125°C
- Material: Metal alloy powder core
- Construction: Shielded, flat wire
- RoHS compliant and halogen-free
- Max. DC Resistance (DCR): 20.0 mΩ
- Test Frequency: 100 kHz
- Rated Voltage: 50V
- Soldering Profile: Max. Peak Temp 260°C for 30 sec
- Moisture Sensitivity Level: Level A
- Storage Temperature: -40°C to +125°C
Buy the Buy Bourns SRP0520 Series Power Inductor Part Number SRP05203R3K Online
Upgrade your electronic designs with the Bourns SRP0520 Series power inductor. Featuring high saturation current, RoHS compliance, and halogen-free construction, this shielded inductor ensures reliable performance in switching power supplies, RF circuits, and DC/DC converters. Its flat wire design minimizes losses and electromagnetic interference, providing excellent efficiency from -55°C to +125°C. Perfect for demanding applications where space is limited but high performance is essential, order online now to benefit from fast delivery and quality assurance.
Order your Bourns SRP0520 Series power inductor SRP05203R3K today and ensure your electronic projects benefit from high saturation current and low noise performance.
Frequently Asked Questions
Where can I buy Bourns SRP05203R3K?
You can click on the BUY or RFQ button to purchase SRP05203R3K from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRP05203R3K?
You can download the SRP05203R3K datasheet or visit the Bourns website for support.
Who is the manufacturer of SRP05203R3K?
Bourns
