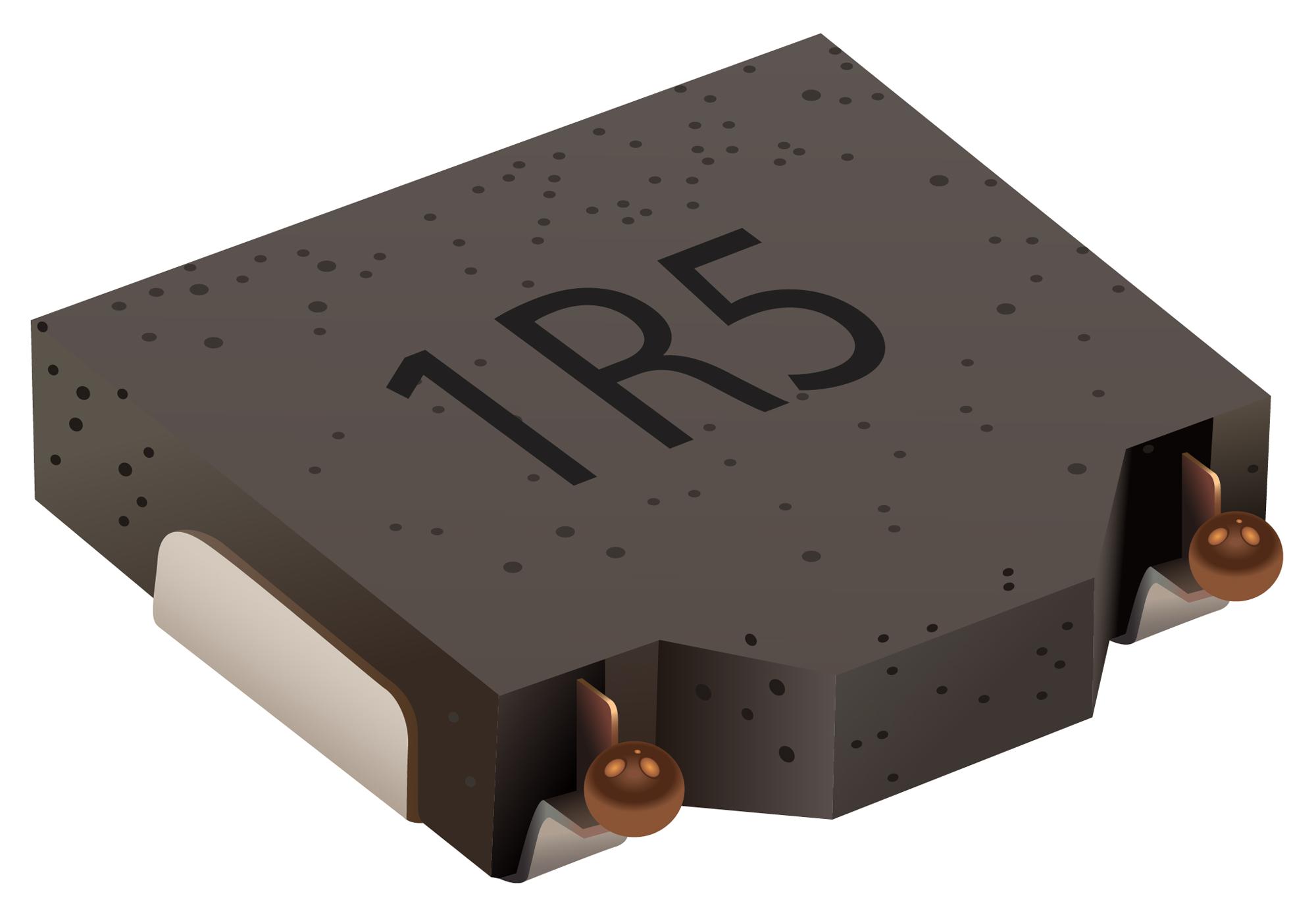

Bourns SRP06104R7K Power Inductor
The Bourns SRP0610 Series shielded power inductors feature a metal alloy powder core, flat wire design, and RoHS compliance. Designed for high saturation current and low buzz noise, these inductors are suitable for power supply filtering and energy storage. They operate effectively between -40°C and 125°C, with dimensions optimized for compact applications. Their robust construction ensures high performance and durability in demanding electronic environments. The series includes multiple inductance values, with precise technical specifications supporting high current and low loss operation, making them ideal for advanced power management systems.
Bourns SRP06104R7K Power Inductor Specifications:
- Core Material: Metal alloy powder
- Wire Material: Enameled copper
- Terminal Finish: Sn (tin)
- Inductance Range: 0.47 μH to 10 μH
- Q (Quality Factor): 10 at 100 kHz/1V
- SRF (Self-Resonant Frequency): 47 MHz to 206 MHz
- DC Resistance: 1.96 to 25.2 mΩ
- Irms: 16 to 70 mA
- Isat (Saturation Current): 3.6 to 95 A
- Operating Temperature: -40°C to 125°C
- Storage Temperature: -40°C to +125°C
- Peak Soldering Temperature: 260°C max
- Soldering Profile: 30 sec. max at 260°C
- Packaging: 2500 pcs per reel
- RoHS Compliant and Halogen Free
- Dimensions: 6.70 x 3.00 mm (L x W)
Buy the Bourns Series SRP Power Inductors: SRP0610 Series 470 nH to 10 μH
Enhance your electronic designs with Bourns SRP0610 Series power inductors. Featuring high saturation current, low buzz noise, and robust construction, these inductors are perfect for power supply filtering, energy storage, and high-current applications. Their compact size and RoHS compliance make them ideal for space-constrained and environmentally conscious projects. Soldering profiles ensure easy assembly, while their outstanding electrical characteristics support long-lasting, efficient operation in demanding environments. Purchase online today to upgrade your power management systems with trusted, high-performance components.
Get Bourns SRP0610 Series power inductors today—built for high saturation current and reliable power filtering.
Frequently Asked Questions
Where can I buy Bourns SRP06104R7K?
You can click on the BUY or RFQ button to purchase SRP06104R7K from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRP06104R7K?
You can download the SRP06104R7K datasheet or visit the Bourns website for support.
Who is the manufacturer of SRP06104R7K?
Bourns
