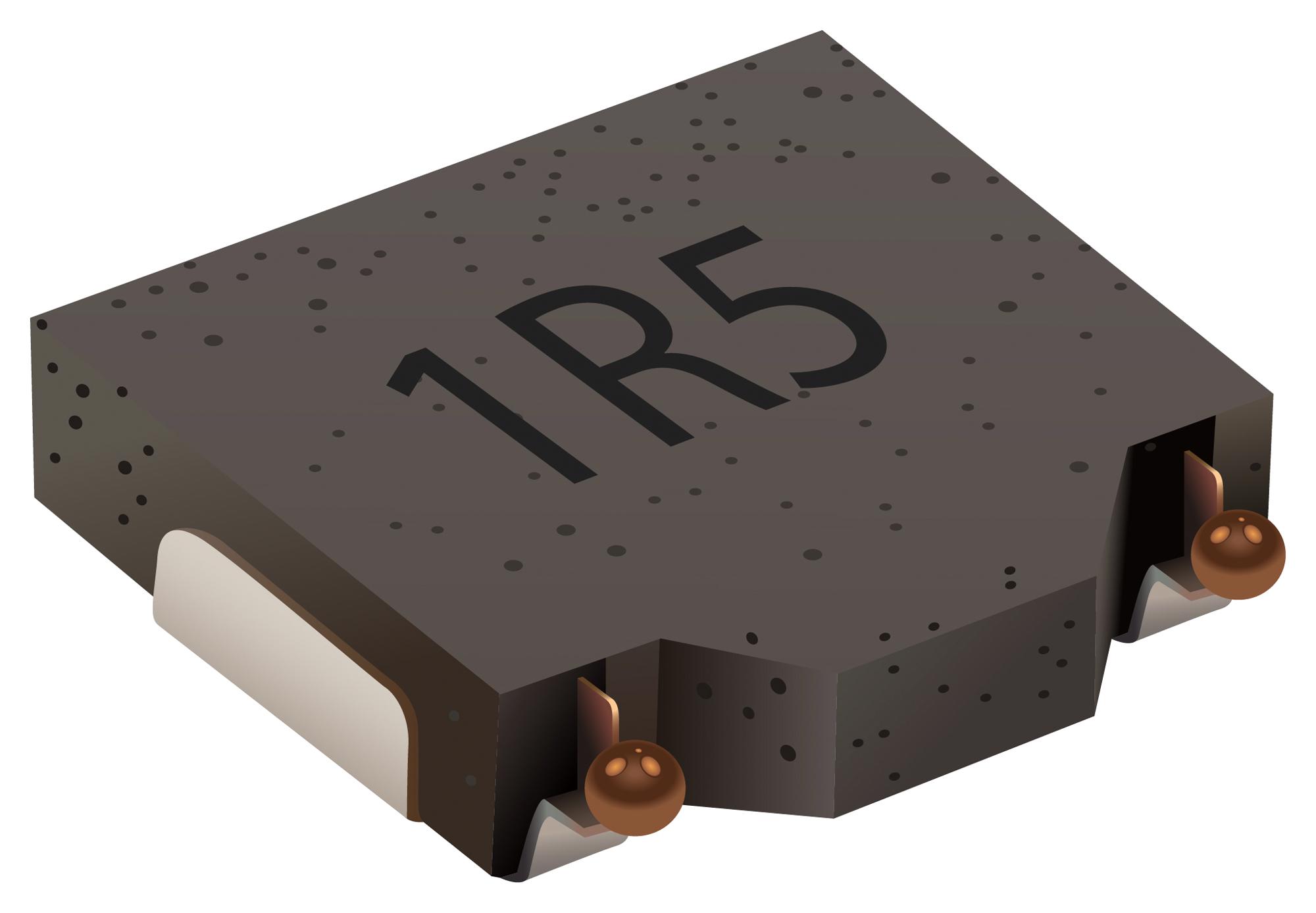

Bourns SRP06201R5K Power Inductor
The SRP0620 series shielded power inductors feature shielded construction, high saturation current, flat wire design, and RoHS compliance. Designed for industrial and electronic applications, these inductors have low buzz noise and are suitable for high-current circuits. The series includes various inductance values from 0.47 µH to 10 µH, with dimensions carefully optimized for PCB mounting. Ideal for power management, filtering, and energy storage, they operate reliably within temperatures from -40 °C to +125 °C, meeting industry standards for efficiency and environmental compliance.
Bourns SRP06201R5K Power Inductor Specifications:
- Inductance Range: 0.47 µH to 10 µH
- Tolerance: ±10%
- Saturation Current (Irms): Up to 82.0 A
- Operating Temperature: -40 °C to +125 °C
- SMD Package Size: 8.10 mm x 8.10 mm
- Maximum Voltage: 50 V
- Core Material: Metal alloy powder
- Shielded Construction: Yes
- RoHS and Halogen Free: Yes
- Soldering Profile: Max. Peak Temperature 260 °C for 30 sec.
- Moisture Sensitivity Level: A
- ESD Classification: N/A
Buy the Bourns SRP0620 U+2013 Reliable Power Inductor for Industrial Applications
Discover the reliable power inductors in the Bourns SRP0620 series, engineered for efficiency and durability in demanding industrial and electronic applications. These shielded power inductors feature RoHS compliance, high saturation current, and low buzz noise, making them ideal for high-current circuits, filtering, and energy storage solutions. With operating temperatures from -40 °C to +125 °C and maximum voltage of 50 V, they ensure consistent performance. Purchase online today and enhance your power management systems with proven Bourns quality and reliability.
Order your Bourns Series SRP0620 power inductor today and ensure your projects benefit from high current capacity and reliable performance.
Frequently Asked Questions
Where can I buy Bourns SRP06201R5K?
You can click on the BUY or RFQ button to purchase SRP06201R5K from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRP06201R5K?
You can download the SRP06201R5K datasheet or visit the Bourns website for support.
Who is the manufacturer of SRP06201R5K?
Bourns
