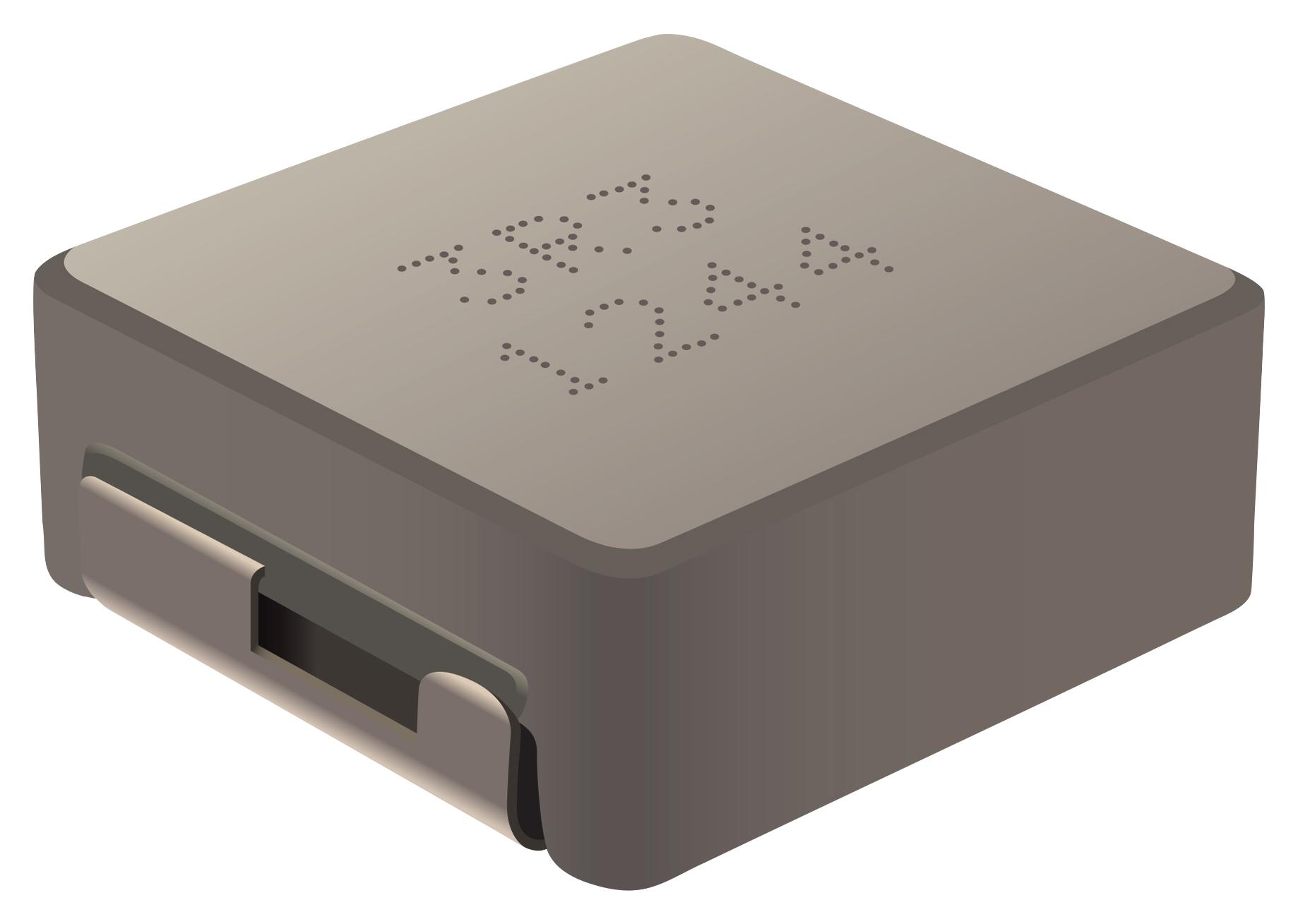

Bourns SRP1770C150M Power Inductor
The SRP1770C series comprises shielded power inductors designed with a metal alloy powder core for high saturation current and low buzz noise. These RoHS compliant and halogen free inductors operate within an inductance range of 0.47 to 47 HH at 100 kHz. Suitable for power supply filtering and energy storage, they feature enameled copper wire, Sn/Ni terminal finish, and operate from -40°C to 125°C. Packaged on 200-piece reels, they are ideal for high-current applications demanding reliable magnetic performance in compact sizes.
Bourns SRP1770C150M Power Inductor Specifications:
- Inductance range: 0.47 to 47 HH at 100 kHz
- Core Material: Metal alloy powder
- Wire Material: Enameled copper
- Terminal Finish: Sn/Ni
- Operating Temperature: -40 °C to 125 °C
- Storage Temperature: -40 °C to 125 °C
- Rated Current: Up to 115 A for the 47 HH model
- Saturation Current: Corresponds to rated Ims
- Dimensions: Length approximately 17.8 mm, width 20.5 mm, height 10 mm
- RoHS compliant, halogen free
- Packaging: 200 pieces per reel
- Temperature Rise: 40 °C at rated Ims
- Moisture Sensitivity Level: 1
- Soldering: 3 reflow cycles max, max profile 260°C for 10 sec
- Certifications: RoHS, Halogen-free
Buy the Buy Bourns SRP1770C150M Part Number SRP1770C150M Online
Enhance your electronic projects with the Bourns SRP1770C150M shielded power inductor, offering high saturation current and low noise operation. These RoHS compliant, halogen free inductors are designed for power filtering and energy storage applications in high-current circuits. Operating from -40°C to 125°C, they feature durable enameled copper wire and Sn/Ni terminals in reliable package formats. Perfect for compact, critical power applications, order online now and ensure your devices benefit from superior magnetic performance, long-term stability, and compliance with environmental standards.
Order your Bourns SRP1770C150M series shielded power inductor today and ensure high reliability for your power supply designs with excellent saturation current.
Frequently Asked Questions
Where can I buy Bourns SRP1770C150M?
You can click on the BUY or RFQ button to purchase SRP1770C150M from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRP1770C150M?
You can download the SRP1770C150M datasheet or visit the Bourns website for support.
Who is the manufacturer of SRP1770C150M?
Bourns
