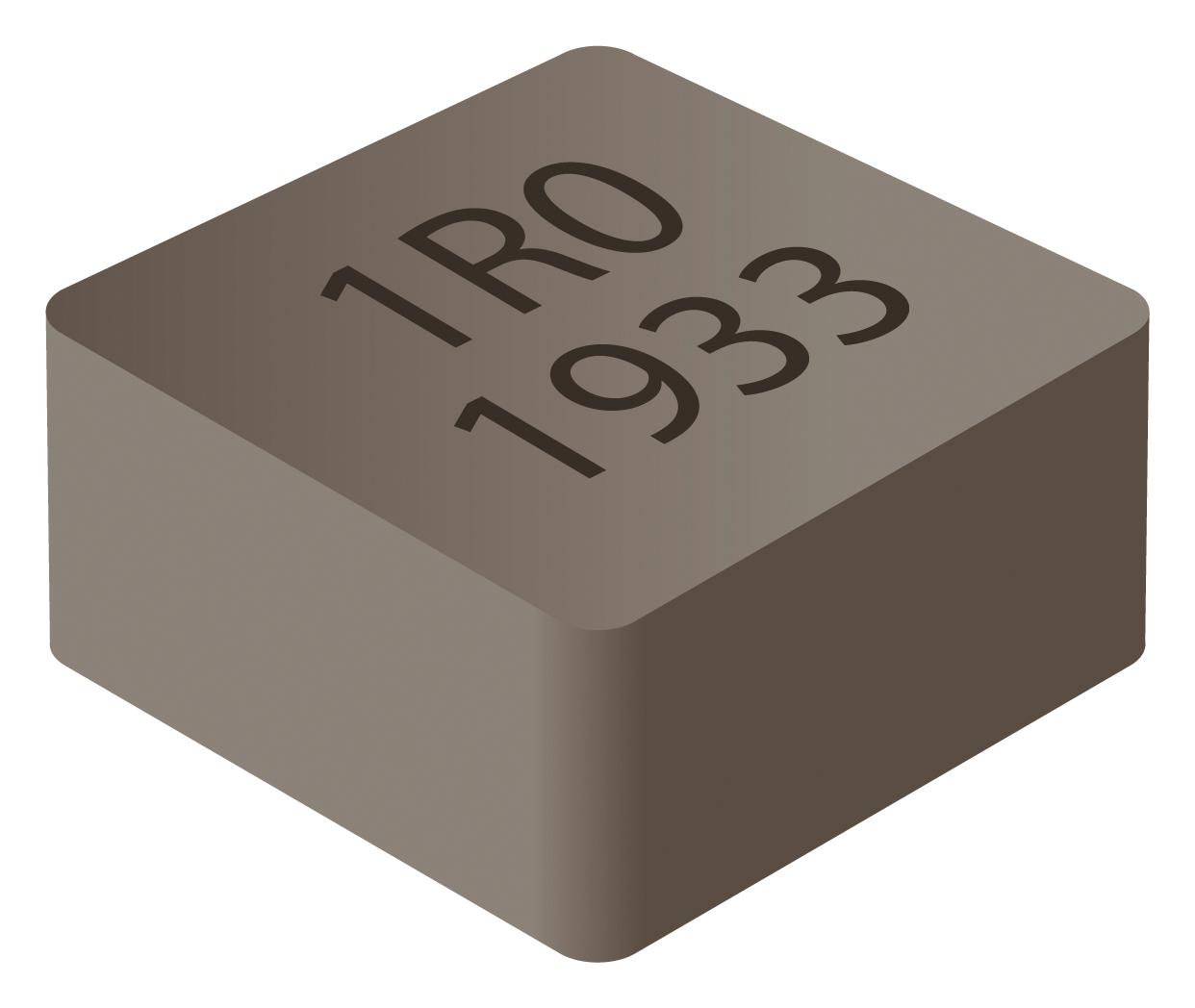

Bourns SRP4018FAR47M Power Inductor
The SRP4018FA series are shielded inductors with a metal alloy powder core, designed for high saturation current and low buzz noise. These inductors feature flat wire construction, are RoHS and halogen free, and comply with AEC-0200 standards. Suitable for power supply filtering, automotive applications, and high-frequency circuits, they offer reliable performance at temperatures from -55°C to +155°C. Their compact dimensions, high saturation current, and low DCR make them ideal for demanding electronic and industrial environments, ensuring stable operation and minimal electromagnetic interference.
Bourns SRP4018FAR47M Power Inductor Specifications:
- Inductance: 0.33 μH to 4.00 μH
- Saturation Current (Isat): 15 A to 19 A
- Operating Temperature: -55°C to +155°C
- Frequency: 100 kHz / 0.1V
- Core Material: Metal alloy powder
- Wire Type: Flat wire
- RoHS & Halogen Free
- Compliance: AEC-0200
- Dimensions: Compatible with 18 x 40 mm packages
- DCR Range: 5.2 mΩ to 15.8 mΩ
- Temperature Rise: 20°C to 40°C at rated Irms
- Package: 3000 pcs per reel
- Test Conditions: Soldering profile pre-heating to max 260°C for 10s, reflow times up to 3 max
Buy the Buy Bourns Inductor Part Number SRP4018FA-R47M Online
Purchase the Bourns SRP4018FA-R47M power inductor online today to ensure top-tier performance in your electronic projects. With high saturation current, compact design, and RoHS compliance, this inductor is ideal for automotive, industrial, and high-frequency circuits. Enjoy fast delivery and trusted quality from a leading manufacturer. Whether you need to enhance power supply filtering or improve electromagnetic compatibility, ordering online guarantees you an authentic product with excellent specifications. Upgrade your design with the SRP4018FA series today for stable, efficient operation.
Buy Bourns SRP4018FA-R47M now and experience unmatched reliability and performance in high-current filtering applications.
