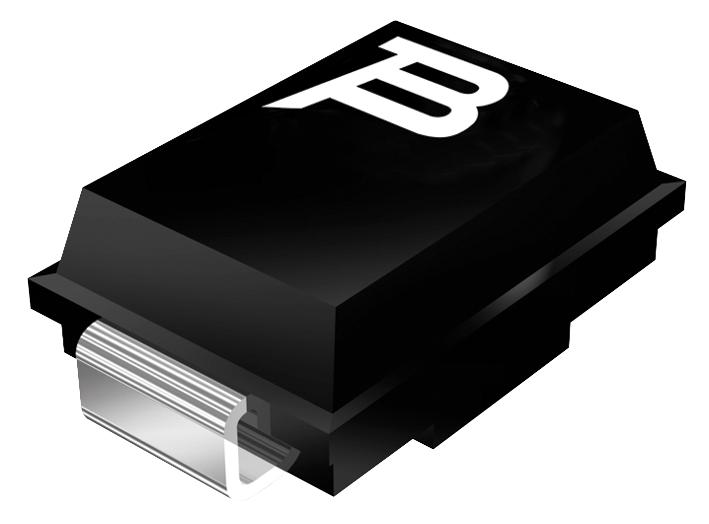

Bourns TISP4011H1BJRS Overvoltage Protector
The TISP4011H1BJ is a highly reliable bidirectional thyristor-based overvoltage protector designed for low voltage applications. It effectively clamps voltage surges by breakdown clamping until reaching its breakover level, then switches to a low-voltage on-state to divert excess current safely. Suitable for industrial and electronic circuit protection, this SMB package device features a symmetrical voltage-triggered design with a maximum peak off-state voltage of 45.25 V and an off-state capacitance of 110 pF. Its robust thermal and electrical ratings ensure reliable operation in demanding environments, making it ideal for sensitive electronic systems.
Bourns TISP4011H1BJRS Overvoltage Protector Specifications:
- Peak off-state voltage: 45.25 V
- Off-state capacitance: 110 pF
- Breakover voltage: 9 to 105 V
- Breakover current: 75 to 200 mA
- On-state voltage at 45A: 3 V
- Holding current: 20 to 60 mA
- Peak pulse current: +100 A (10/1000 us), +500 A (2/10 us)
- Junction temperature: -40 to +150 °C
- Storage temperature: -55 to +150 °C
- Device package: SMB (Top view, J-bend)
- Repetitive peak off-state voltage: 45.25 V
Buy the Bourns TISP4011H1BJ – Reliable Overvoltage Protectors for Industrial Applications
Secure your electronic systems today with the Bourns TISP4011H1BJ safeguard device. This low-voltage bidirectional thyristor ensures reliable surge protection, effectively clamping voltage surges up to 45.25 V and diverting excess current safely. Ideal for sensitive and industrial electronics, its robust ratings support consistent performance over a wide temperature range, from -40°C to +150°C. Available in SMB package, it offers easy integration into your designs. Purchase online now for dependable overvoltage protection that enhances your project’s durability and safety.
Order your Bourns Series TISP4011H1BJ today and safeguard your electronic circuits with high-performance overvoltage protection.
Frequently Asked Questions
Where can I buy Bourns TISP4011H1BJRS?
You can click on the BUY or RFQ button to purchase TISP4011H1BJRS from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part TISP4011H1BJRS?
You can download the TISP4011H1BJRS datasheet or visit the Bourns website for support.
Who is the manufacturer of TISP4011H1BJRS?
Bourns
