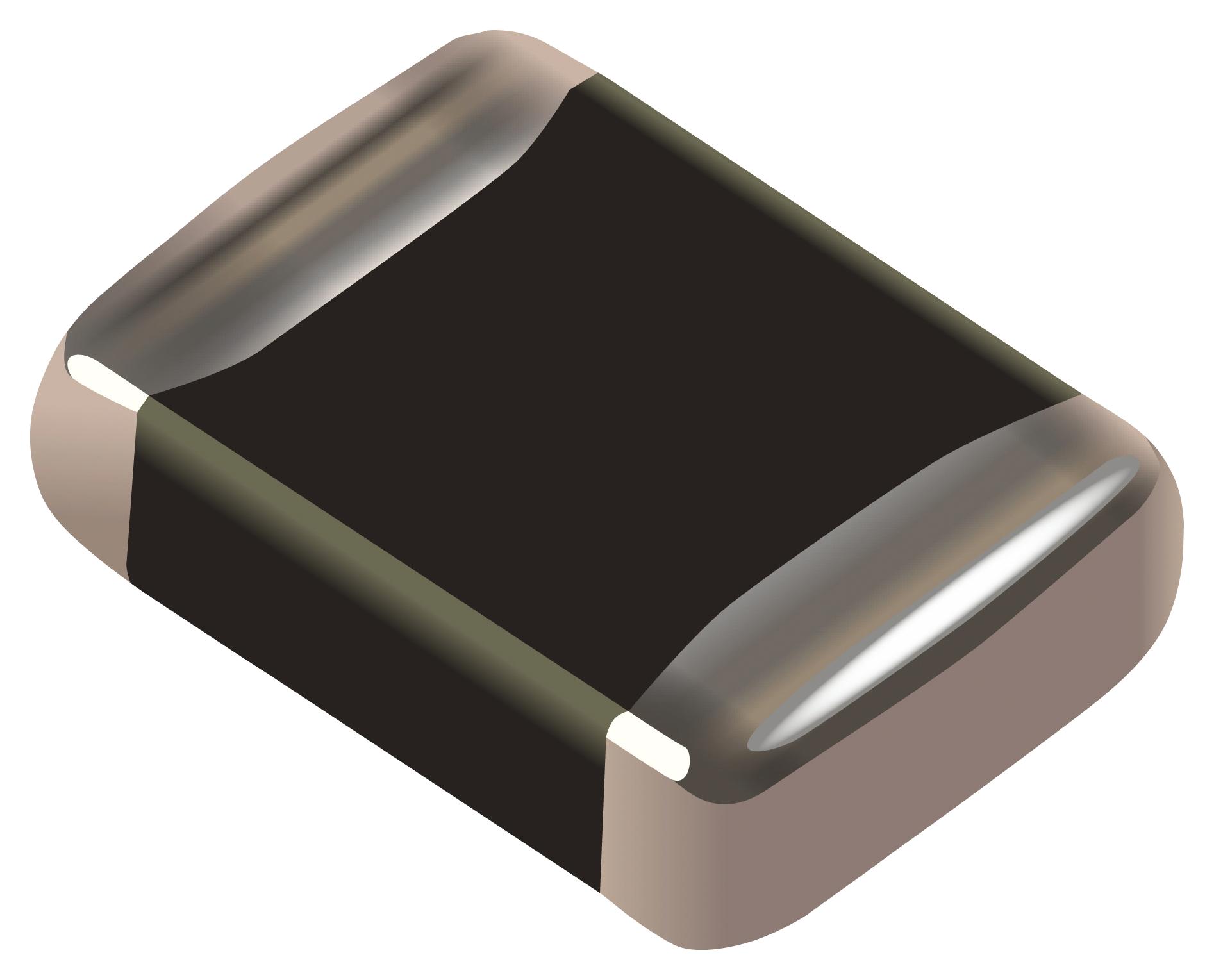

Bourns ZV11K0805121NIR1 Low Voltage Surge Protector
The ZV series low voltage varistors are designed to protect sensitive electronic devices against high voltage surges in the low voltage region. Suitable for circuit board level applications, they feature excellent transient energy absorption, stable protection over -55 to +125°C, and are RoHS compliant. Available in six sizes from 0603 to 2220, these varistors handle DC voltages from 3 V to 170 V, with peak surge currents up to 1200 A, making them ideal for surge suppression, ESD protection, and replacing larger TVS diodes in various electronic circuits.
Bourns ZV11K0805121NIR1 Low Voltage Surge Protector Specifications:
- Model: ZV11K0805121NIR1
- Sizes available: 0603, 0805, 1206, 1210, 1812, 2220
- Rated DC Voltage: 25 V
- Peak Surge Current: 401 A
- Transient energy: 0.010 J
- Response Time: <2 ns
- Operating Temperature Range: -55 to +125°C
- Maximum Working Voltage: 25 V DC
- Capacitance: 260 pF to 2300 pF depending on model
- Pulse Rating: Up to 1200 A / 10/1000 µs wave
- RoHS compliant
- Soldering: Suitable for wave and reflow, with specific soldering profiles
- Storage Temperature: -65 to +150°C
- Clamping Voltage: Varies with model, approximately 39 V at 1 mA
Buy the Bourns ZV11K0805121NIR1 – Reliable Low Voltage Surge Suppressor for Industrial Applications
Secure your electronic circuits today by purchasing the Bourns low voltage surge varistor ZV11K0805121NIR1. Designed for circuit board level surge, ESD, and transient voltage protection, it features high surge current handling up to 401 A, rapid response time under 2 nanoseconds, and wide operating temperature range from -55 to +125°C. RoHS compliant and suitable for wave or reflow soldering, this durable varistor ensures long-term reliability and peak performance in industrial, automotive, and consumer electronic applications. Order online now for fast delivery and maximum protection.
Buy Bourns ZV11K0805121NIR1 now and experience unmatched surge protection and circuit reliability in your electronic designs.
Frequently Asked Questions
Where can I buy Bourns ZV11K0805121NIR1?
You can click on the BUY or RFQ button to purchase ZV11K0805121NIR1 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part ZV11K0805121NIR1?
You can download the ZV11K0805121NIR1 datasheet or visit the Bourns website for support.
Who is the manufacturer of ZV11K0805121NIR1?
Bourns
