C&K COMPONENTS 2TMT254 Datasheet & Stock

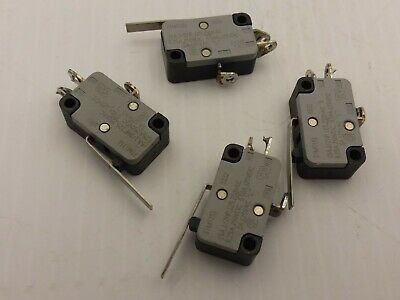

This lever limit switch operates at 250 VAC with a current rating of 10 Amps and features a super fast response. It has a contact rating that ranges from low level signals up to 21 Amps at 277 V AC. The switch offers an electrical life of approximately 300,000 cycles at 10 Amps and 250 V AC. It has an insulation resistance of at least 1,000 megaohms and a dielectric strength of a minimum of 1,500 Vrms at sea level. The operating temperature range is from -40°F to 185°F (-40°C to 85°C). The operating force required for activation ranges from 15 to 400 grams when using the actuator button. Mounting is secured with torque screws, applying 2-5 in/lbs.
