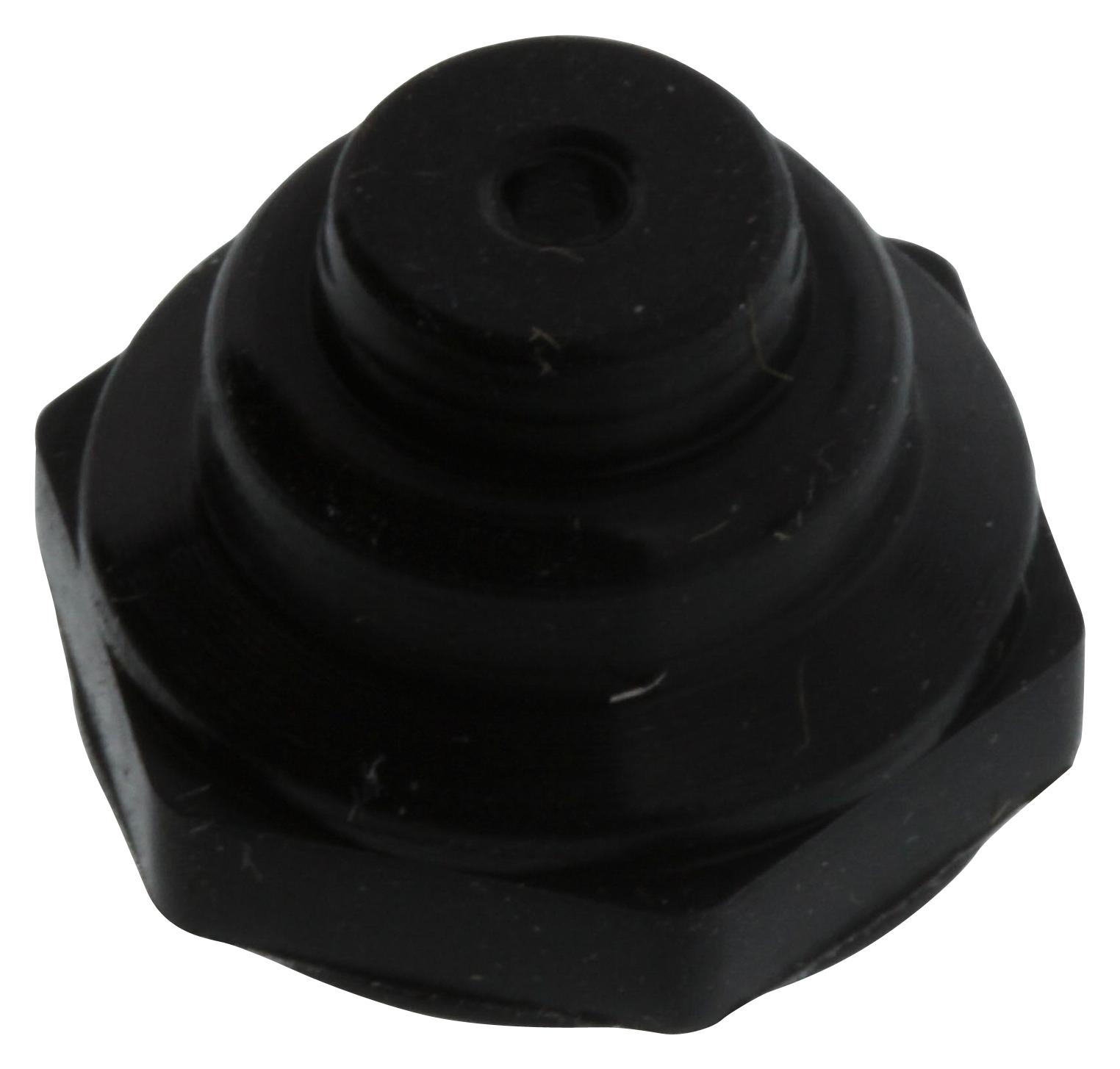

C&K COMPONENTS 704D02000 Miniature Toggle Switch
The 7000 Series miniature toggle switches are designed for reliable switching in diverse industrial and electronic applications. Made from durable materials like glass-filled nylon and zinc, these switches feature epoxy-sealed terminals compatible with bottom-wash PC board cleaning, RoHS compliance, and multiple actuator and termination options. They offer high dielectric strength, multiple poles and positions, and a long electrical life of up to 100,000 cycles. Suitable for control systems, instrumentation, telecommunications, medical equipment, and automation, these switches are engineered for precision, encapsulating versatility with robust construction and easy installation.
C&K COMPONENTS 704D02000 Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Contact Rating: 0.4 VA max. @ 20 V AC or 28 V DC; 5 Amps @ 120 V AC or 28 V DC; 2 Amps @ 250 V AC
- Operating Temperature: -30°C to 85°C
- Electrical Life: 100,000 cycles for certain models, 40,000 for others
- Contact Resistance: Below 10 mΩ initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9 Ω min.
- Materials: Case: Nylon 6/6 or DAP, Brass Chrome-Plated Actuator, Copper Alloy Contacts with Gold or Silver Plate
- Seal: Epoxy terminal seal
- Bushing Material: Brass or zinc, nickel plated
- Housing: Stainless steel
- Support: Brass or steel, tin plated
Buy the C&K Series 7000 Miniature Toggle Switch: 704D02000
Order the C&K 7000 Series miniature toggle switch online today for reliable performance in industrial control, telecommunications, instrumentation, and medical equipment. These switches feature epoxy-sealed terminals, RoHS compliance, and a long-lasting electrical life. Designed with durable materials like nylon and zinc, they provide precise switching with high dielectric strength and various actuator and termination options. Perfect for automation and control systems, these switches ensure dependable operation, easy installation, and versatile configurations to meet your specific technical needs.
Get C&K 7000 Series toggle switch today—built for precision, durability, and versatile control in your critical applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 704D02000?
You can click on the BUY or RFQ button to purchase 704D02000 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 704D02000?
You can download the 704D02000 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 704D02000?
C&K COMPONENTS
