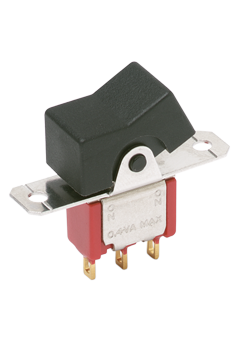

C&K COMPONENTS 7105J64ZQE1 Miniature Rocker Lever Switch
The C&K Components 7105J64ZQE1 is a miniature rocker lever switch designed for diverse applications requiring reliable switching functionality. It boasts a multi-pole, multi-position design, providing flexibility in circuit control. The switch's epoxy terminal seal ensures compatibility with bottom wash cleaning processes, making it suitable for automated manufacturing environments. Its robust construction, featuring glass-filled nylon 6/6 case and various contact materials, ensures durability and consistent performance in telecommunications, instrumentation, and medical equipment. Available with a wide range of actuator and termination options, the 7105J64ZQE1 offers a versatile solution for demanding applications.
C&K COMPONENTS 7105J64ZQE1 Miniature Rocker Lever Switch Specifications:
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max. Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load. All other models: 40,000 cycles.
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level.
- Operating Temperature: –30ºC to 85ºC
- Case Material: Glass filled nylon 6/6, flame retardant, heat stabilized, or diallyl phthalate (DAP) (UL 94V-0)
- Actuator Material: Nylon, black
- Frame Material: Nylon, black (front mount); Spring steel, black (rear mount)
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass or steel, matte-tin plated
- End Contact Material: Copper alloy, with gold plate over nickel plate
- Center Contact Material: Copper alloy, silver plated
- Terminal Seal Material: Epoxy
- Hardware Material: Brass (nuts & screws), Stainless steel (lockwasher), Nylon (standoff)
