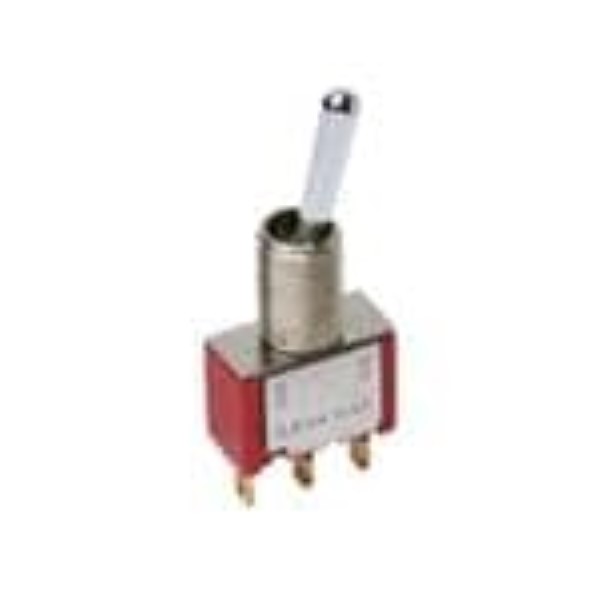

C&K COMPONENTS 7107P3Y9ZBE Miniature Toggle Switch
The C&K Components 7107P3Y9ZBE is a miniature toggle switch designed for a variety of applications requiring reliable switching functionality. This switch offers multi-pole and multi-position options, providing flexibility in circuit design. It boasts a wide range of actuator and termination choices, catering to diverse mounting and connection needs. The epoxy terminal-seal compatibility ensures suitability for bottom wash cleaning processes, a crucial feature in many industrial environments. Common applications include telecommunications equipment, precision instrumentation, and critical medical devices where dependable performance is paramount.
C&K COMPONENTS 7107P3Y9ZBE Miniature Toggle Switch Specifications:
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max., Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles, All other models: 40,000 cycles
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: –30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9
- Case Material: Glass filled nylon 6/6, DAP
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass or steel, tin plated
- End Contacts Material: Copper alloy, with gold plate over nickel plate
- Center Contacts Material: Copper alloy, silver plated
