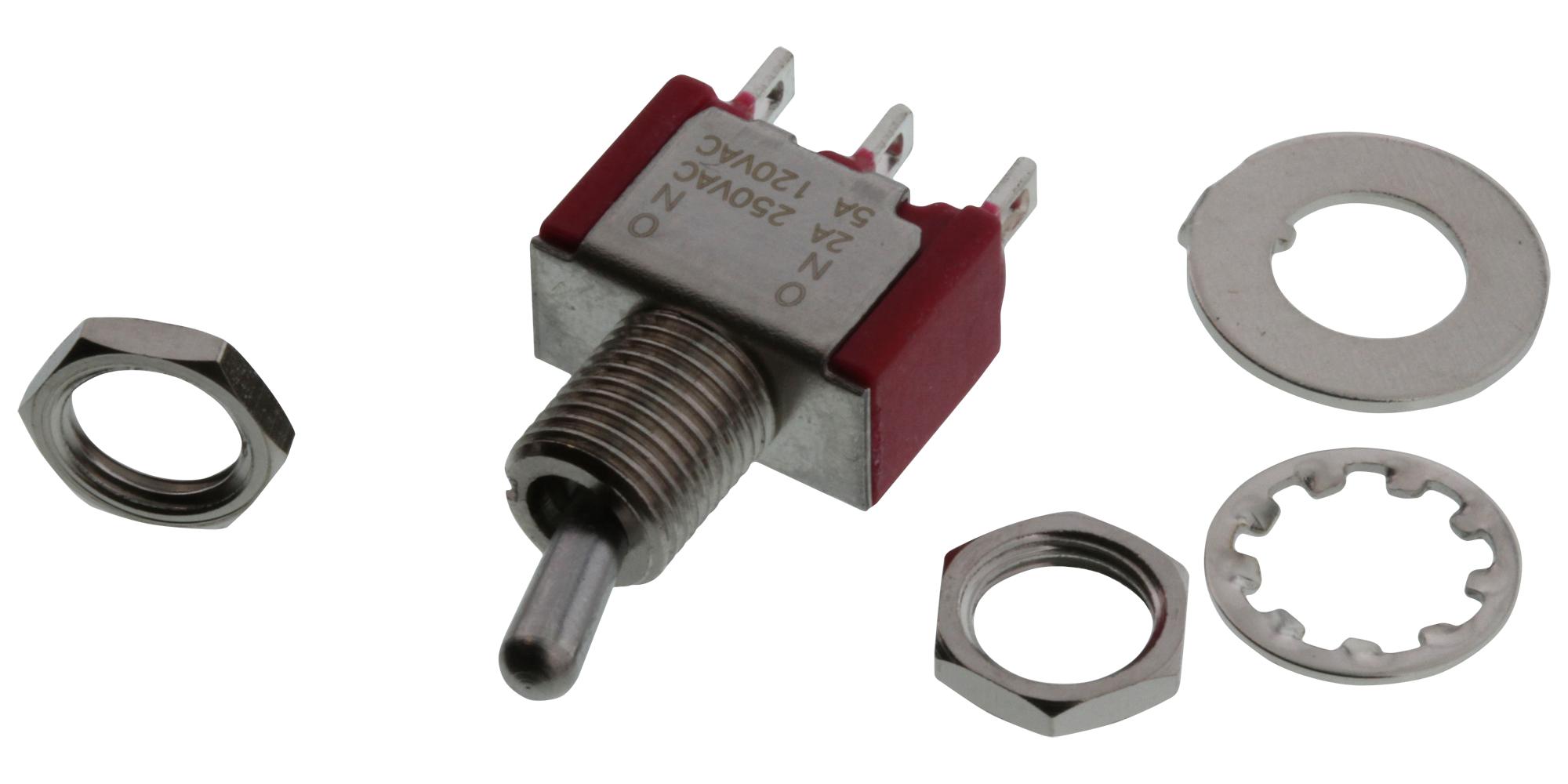

C&K COMPONENTS 7107SYZQE Miniature Toggle Switch
The miniature toggle switch is a high-quality, reliable component ideal for various applications including telecommunications, instrumentation, medical equipment, and control systems. Featuring multiple poles and positions, epoxy-sealed terminals compatible with bottom wash cleaning, and RoHS compliance, it ensures durability and environmental safety. The switch supports different actuator and termination options, making it suitable for complex electronic and industrial wiring setups. Designed for ease of installation, it guarantees long operational life and stable electrical performance in demanding environments.
C&K COMPONENTS 7107SYZQE Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Contact Rating: 0.4 VA max. @ 20 V AC/DC or 5 AMPS @ 120 V AC / 28 V DC
- Operating Temperature: -30°C to 85°C
- Electrical Life: 100,000 cycles for models 7X01 and UX1, 40,000 for others
- Contact Resistance: Below 10 mΩ initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9 Ω min.
- Materials: Case - Glass filled nylon 6/6 or DAP, Actuator - Brass, Chrome plated, Contacts - Copper alloy with gold or silver plating
- Epoxy terminal seal, Nickel plated hardware, Various actuator and termination options available
- Dimensions: Height approximately 0.704 inches (17.88 mm), diameter varies with actuator type, mounting options include vertical, right angle, snap-in, and threaded bushings
- Switch Function: SP on-none-on, SP on-off-on, DP on-none-on, DP on-off-on, Momentary configurations available
- RoHS compliant models available, designed for durability and environmental safety
Buy the C&K Series 7000 Miniature Toggle Switch: 7107SYZQE
Order the C&K 7107SYZQE miniature toggle switch online today and experience reliable performance in demanding environments. Its epoxy-sealed terminals support bottom wash cleaning, ensuring durability and environmental safety. Suitable for telecommunication, instrumentation, medical, and control applications, this switch supports multiple poles and positions for versatile wiring solutions. Designed with high-quality materials such as glass-filled nylon and brass, it guarantees long service life and stable electrical performance, making it an essential component for industrial and electronic systems seeking durability and precision.
Get C&K 7107SYZQE miniature toggle switch today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7107SYZQE?
You can click on the BUY or RFQ button to purchase 7107SYZQE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7107SYZQE?
You can download the 7107SYZQE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7107SYZQE?
C&K COMPONENTS
