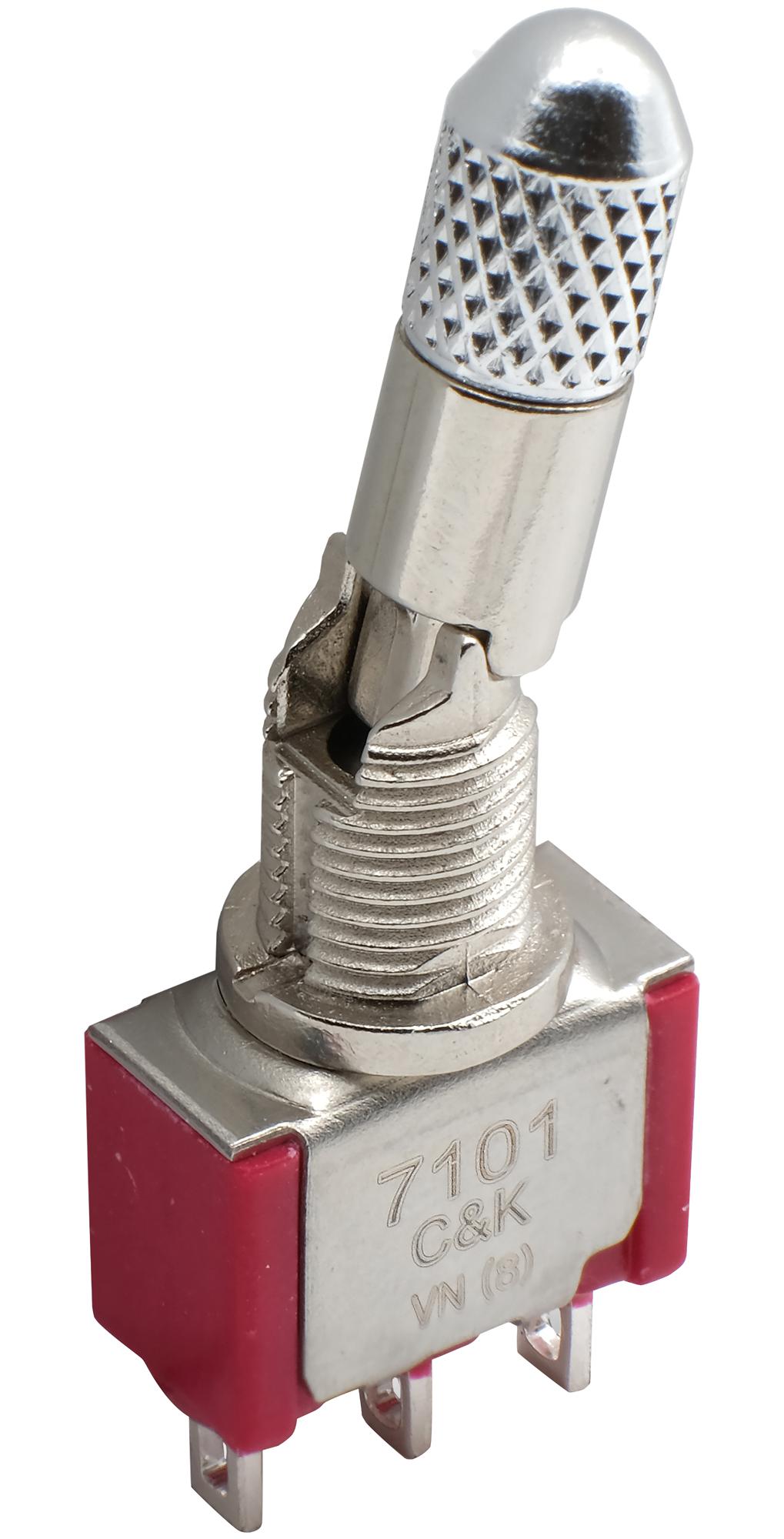

C&K COMPONENTS 7201K2AQEG Miniature Toggle Switch
The 7000 Series miniature toggle switch offers reliable SPDT and DPDT switching functionality with robust contact ratings. Designed with epoxy terminal seals compatible with bottom-wash cleaning, it features a glass-filled nylon or diallyl phthalate case, brass or zinc bushings, and copper alloy contacts with gold or silver plating for enhanced durability. Suitable for panel and PCB mounting, it supports various actuator options such as locking and anti-rotation levers, with both vertical and right-angle configurations. Certified IP67 for extensive protection against dust and immersion, it is ideal for industrial, medical, and instrumentation applications, combining high performance with ease of installation.
C&K COMPONENTS 7201K2AQEG Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Contact Rating: 0.4 VA max. @ 20 V AC/DC for B contact material; 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles for models 7X01 and UX1; 40,000 cycles for other models
- Contact Resistance: Below 10 mΩ initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9 Ω min.
- Operating Temperature: -30°C to 85°C
- Materials: Case - Glass-filled nylon 6/6 or diallyl phthalate; Actuator - Chrome plated brass; Housing - Stainless steel; Contacts - Copper alloy with gold or silver plating
- Protection: IP67 rated against dust and full water immersion
- Terminations: Copper alloy with gold or matte tin plating, epoxy seals for terminals
- Mounting Options: Panel and PCB, vertical and right-angle configurations with V-bracket snap-in support
- RoHS compliant models available
Buy the C&K Series 7000 Miniature Toggle Switch: 7201K2AQEG
Purchase the C&K 7000 Series miniature toggle switch online today. This high-quality component features epoxy sealing, IP67 protection, multiple actuator styles, and various termination options. Perfect for industrial, medical, and instrumentation applications, it offers reliable switching performance with long lifecycle endurance. Easy to install on panels or PCB, available with locking and anti-rotation levers, this switch ensures durability and precision in demanding environments. Order now to enhance your project with a trusted, certified switching solution.
Get C&K series 7000 toggle switch 7201K2AQEG today—built for precision, durability, and proven IP67 protection for demanding environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7201K2AQEG?
You can click on the BUY or RFQ button to purchase 7201K2AQEG from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7201K2AQEG?
You can download the 7201K2AQEG datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7201K2AQEG?
C&K COMPONENTS
