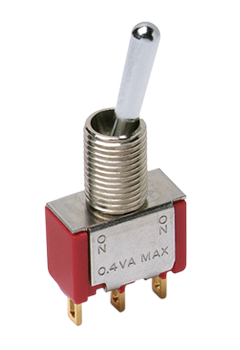

C&K COMPONENTS 7203SYWBE Miniature Toggle Switch
The C&K Components 7203SYWBE is a miniature toggle switch designed for versatility and reliability in a range of industrial applications. Featuring a compact form factor and a broad selection of actuator and termination choices, this switch caters to diverse design requirements. It finds utility in telecommunications, instrumentation, and medical equipment, among other sectors. RoHS compliant models are available, ensuring adherence to environmental standards. The switch offers dielectric strength of 1000 Vrms and operating temperatures from -30ºC to 85ºC, providing robust performance in demanding environments.
C&K COMPONENTS 7203SYWBE Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max; Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load; All other models: 40,000 cycles
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
Buy the 7203SYWBE C&K COMPONENTS Miniature Toggle Switch | myMectronic
Purchase the C&K Components 7203SYWBE Miniature Toggle Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7203SYWBE?
You can click on the BUY or RFQ button to purchase 7203SYWBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7203SYWBE?
You can download the 7203SYWBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7203SYWBE?
C&K COMPONENTS
