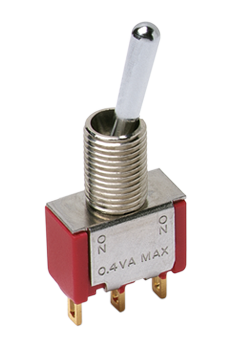

C&K COMPONENTS 7301TPZGE Miniature Toggle Switch
The C&K Components 7301TPZGE is a miniature toggle switch designed for diverse applications requiring a compact and versatile switching solution. Featuring a wide variety of actuator and termination options, this switch is well-suited for telecommunications equipment, instrumentation, and medical devices. It boasts a robust construction with glass-filled nylon 6/6 housing, brass or zinc bushings, and gold-plated contacts for reliable performance. The switch is also epoxy terminal-seal compatible with bottom wash cleaning and is available in RoHS compliant models, ensuring environmental responsibility. Its compact size and broad functionality make it a valuable component in numerous industrial and commercial applications.
C&K COMPONENTS 7301TPZGE Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max; Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load; All other models: 40,000 cycles
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts
- Insulation Resistance: 10[9] Ω min.
Buy the 7301TPZGE C&K COMPONENTS Miniature Toggle Switch | myMectronic
Purchase the C&K Components 7301TPZGE Miniature Toggle Switch securely online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7301TPZGE?
You can click on the BUY or RFQ button to purchase 7301TPZGE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7301TPZGE?
You can download the 7301TPZGE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7301TPZGE?
C&K COMPONENTS
