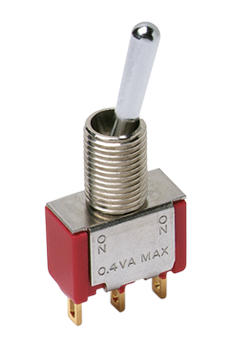

C&K COMPONENTS 7408TZQE Miniature Toggle Switch
The C&K Components 7408TZQE is a miniature toggle switch designed for versatility and reliability in a range of applications. Featuring a compact design and a wide selection of actuator and termination options, this switch is well-suited for use in telecommunications equipment, instrumentation, and medical devices. RoHS compliant models are available, ensuring adherence to environmental standards. The switch offers robust performance with dielectric strength of 1000 Vrms and operating temperatures from -30ºC to 85ºC.
C&K COMPONENTS 7408TZQE Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max; Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load; All other models: 40,000 cycles
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
Buy the 7408TZQE C&K COMPONENTS Miniature Toggle Switch | myMectronic
Purchase the C&K Components 7408TZQE Miniature Toggle Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7408TZQE?
You can click on the BUY or RFQ button to purchase 7408TZQE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7408TZQE?
You can download the 7408TZQE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7408TZQE?
C&K COMPONENTS
