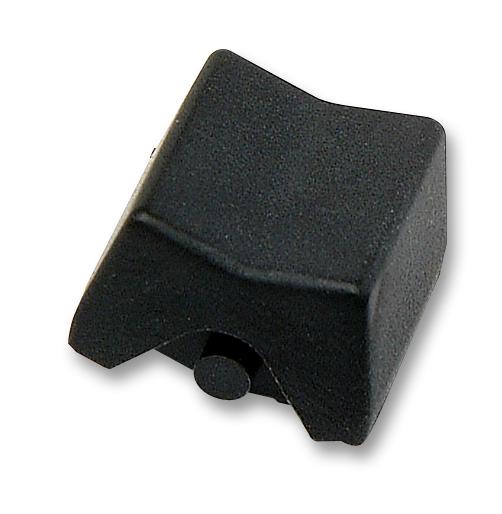

C&K COMPONENTS 775A02263 Miniature Rocker Lever Switch
The C&K 7000 Series Miniature Rocker & Lever Handle Switches are designed for a broad range of applications, including telecommunications, instrumentation, and medical equipment. These switches offer a compact footprint and a versatile selection of actuator and termination options to meet diverse design requirements. The epoxy terminal seal ensures compatibility with bottom wash PCB cleaning methods, enhancing manufacturing efficiency. Constructed with materials like glass-filled nylon 6/6 and stainless steel, these switches provide durability and reliability in demanding environments. Available in various pole and contact configurations, the 7000 Series delivers a robust and adaptable switching solution.
C&K COMPONENTS 775A02263 Miniature Rocker Lever Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC (B contact material), 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC (Q contact material)
- Case Material: Glass filled nylon 6/6, flame retardant, heat stabilized, or diallyl phthalate (DAP) (UL 94V-0)
- Actuator Material: Nylon, black
- Electrical Life: 100,000 cycles (7X01 and UX1 models), 40,000 cycles (other models)
- Frame Material (Front Mount): Nylon, black
- Frame Material (Rear Mount): Spring steel, black
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Switch Support Material: Brass or steel, matte-tin plated
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: –30ºC to 85ºC
- End Contact Material: Copper alloy, with gold plate over nickel plate (B contact material), Coin silver, silver plated (Q contact material)
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9
- Center Contact & Terminal Material: Copper alloy, with gold plate over nickel plate (B contact material), Copper alloy, silver plated (Q contact material)
- Terminal Seal: Epoxy
- Hardware: Mounting nuts & screws: Brass, Lockwasher: Stainless steel, Standoff: Nylon
