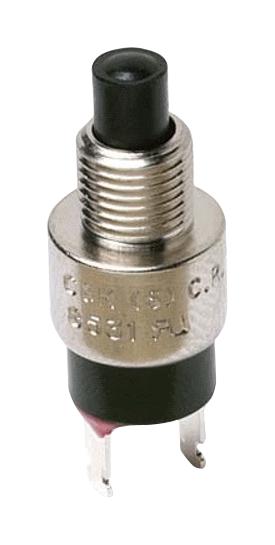

C&K COMPONENTS 8531SZQE2 Subminiature Pushbutton Switch
The 8500 Series subminiature pushbutton switches are designed for reliable operation in electronics and networking equipment. These panel-mountable switches feature ratings up to 3 AMPS with pre-travel or over-travel options, reliable contact design, and RoHS compliance. Constructed with nylon frames, brass bushings, and silver or gold contact materials, they provide high insulation resistance and durable electrical life. Suitable for telecommunications, computers, and peripherals, they are ideal for applications requiring compact, dependable momentary pushbutton switches with epoxy terminal seals and various actuator options.
C&K COMPONENTS 8531SZQE2 Subminiature Pushbutton Switch Specifications:
- Contact Material: Coin silver, silver or gold plated
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC; 3 AMPS @ 120 V AC or 28 V DC
- Electrical Life: 250,000 actuations for 853X models; 10,000 for 855X models
- Insulation Resistance: 1020 MΩ min
- Dielectric Strength: 1,000 Vrms min
- Operating Temperature: -30°C to 65°C
- Material: Nylon frame, brass bushing, epoxy terminal seal
- Dimensions: Panel thickness .005 to .125 inches, actuator height varies, typical actuation force around 150-250 g
- Mounting: Panel mount with snap-in or threaded options; includes mounting nuts and lockwashers
- Mechanical Life: Up to 250,000 cycles depending on model
- Additional Features: RoHS Compliant, epoxy sealed terminals, compatible with PCB, multiple color and actuator options
- Certifications: RoHS compatible
Buy the Buy CK Switches 8500 Series Pushbutton Part Number 8531SZQE2 Online
Purchase your CK Switches 8500 Series subminiature pushbutton switch online today and benefit from high-quality, reliable operation in your electronics. This compact switch features ratings up to 3 AMPS, epoxy sealed terminals, and various actuator options, making it ideal for telecommunications, computing, and networking equipment. Its RoHS compliance ensures environmental safety while providing durable electrical life of up to 250,000 cycles. With panel mounting versatility and multiple color choices, these switches deliver reliable performance for demanding applications. Order now to enhance your device control solutions with trusted quality.
Order your CK Switches 8500 Series 8531SZQE2 pushbutton switch today and ensure reliable, compact control in your electronic projects with premier quality.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 8531SZQE2?
You can click on the BUY or RFQ button to purchase 8531SZQE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 8531SZQE2?
You can download the 8531SZQE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 8531SZQE2?
C&K COMPONENTS
