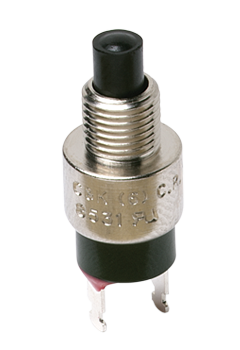

C&K COMPONENTS 8532T1ZQE1 SPST Off-Momentary Switch
The C&K COMPONENTS 8532T1ZQE1 is a subminiature pushbutton switch within the 8500 series, engineered for versatility and reliability in a compact form factor. This SPST off-momentary switch is designed to meet the demands of various applications, including telecommunications equipment, computer peripherals, and other electronic devices. The switch boasts a robust construction with glass-filled phenolic or diallyl phthalate case, a phenolic or glass-filled polyester plunger, and a nickel-plated brass bushing. It offers a contact rating of 1 AMP @ 120 V AC or 28 V DC and features a reliable contact design for consistent performance. The switch is also RoHS compliant, ensuring environmental responsibility. With its compact size and versatile functionality, the 8532T1ZQE1 is a valuable component for a wide range of electronic assemblies.
C&K COMPONENTS 8532T1ZQE1 SPST Off-Momentary Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC (853X Models)
- Case Material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- Plunger Material: Phenolic or glass filled polyester (UL94V-0)
- Cap and Frame Material: Nylon
- Electrical Life: 250,000 actuations at full load (853X Models), 10,000 actuations at full load (855X Models)
- Contact Resistance: Below 30 mΩ typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 65ºC
- Torque Specs: 50 in. lbs max. (15/32” bushings), 12 in. lbs max. (1/4 -40 bushing types)
Buy the 8532T1ZQE1 C&K COMPONENTS SPST Off-Momentary Switch | myMectronic
Purchase the C&K COMPONENTS 8532T1ZQE1 securely and efficiently for your project needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 8532T1ZQE1?
You can click on the BUY or RFQ button to purchase 8532T1ZQE1 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 8532T1ZQE1?
You can download the 8532T1ZQE1 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 8532T1ZQE1?
C&K COMPONENTS
