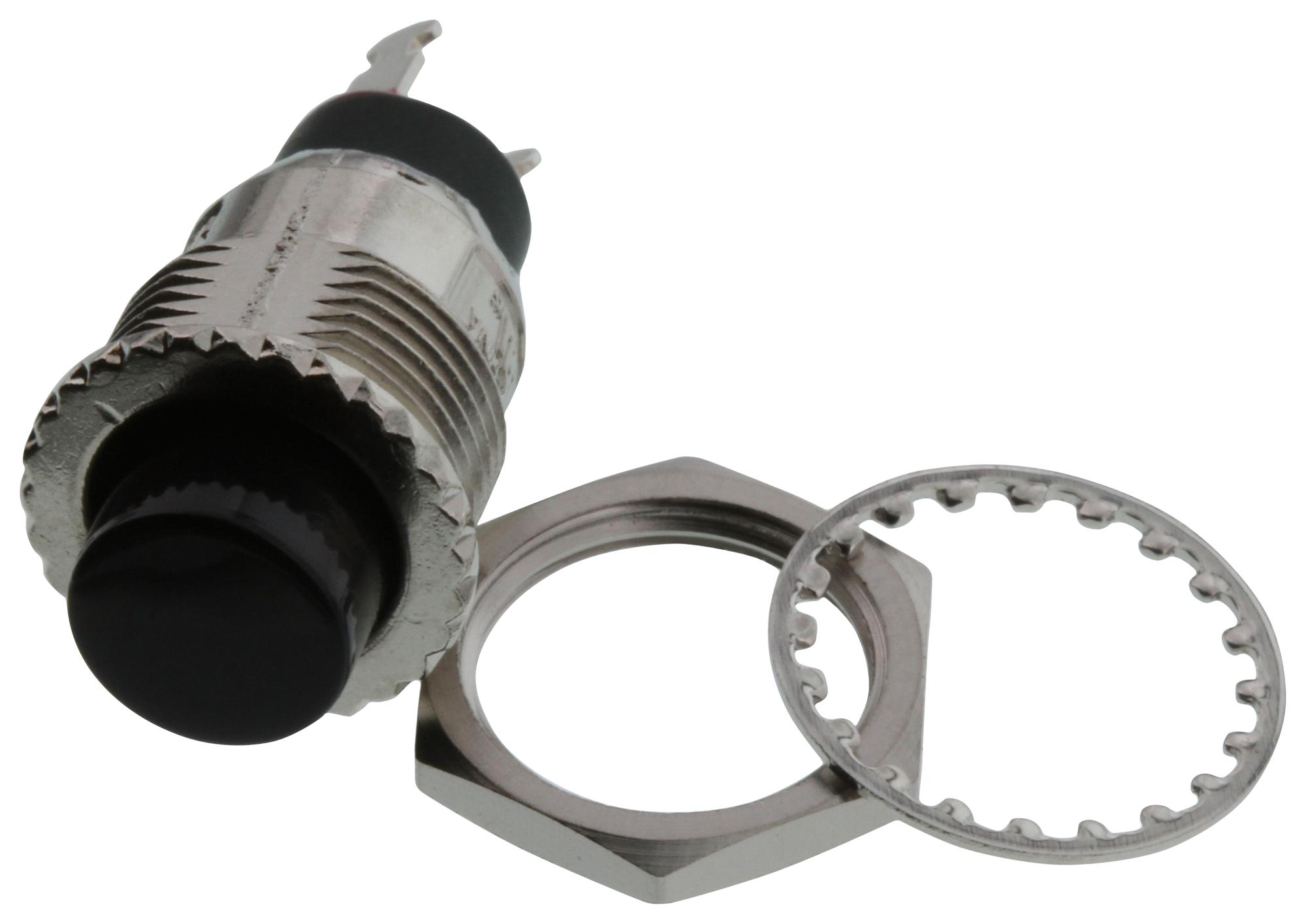

C&K COMPONENTS 8532T1ZQE2 Subminiature Pushbutton Switch
The 8500 Series Subminiature Pushbutton Switches are reliable, RoHS compliant components designed for panel mounting in telecommunications, networking, and computer equipment. They feature a variety of configurations, including pre-travel and over-travel models, with ratings up to 3 AMPS and contact materials like coin silver, silver, or gold-plated. These switches can endure up to 250,000 actuations and have epoxy terminal seals, making them durable for demanding applications. They are available with various actuators, terminal types, and frame options, suitable for applications requiring precise control and dependable operation.
C&K COMPONENTS 8532T1ZQE2 Subminiature Pushbutton Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC (853X models), 3 AMPS @ 120 V AC or 28 V DC (855X models)
- Electrical Life: 250,000 actuations (853X), 10,000 actuations (855X)
- Contact Resistance: Below 30 mΩ
- Insulation Resistance: ≥1020 MΩ
- Dielectric Strength: 1,000 Vrms min.
- Operating Temperature: -30°C to 65°C
- Materials: Nylon frame, brass bushing, coin silver or gold-plated contacts, epoxy terminal seal
- Dimensions vary with models; typical actuation travel 0.150 inches, panel thickness up to 0.125 inches
- Switch functions include SPST, with options for momentary or maintained action, various actuators and finish options available
Buy the Buy CK Switches 8500 Series Pushbutton Part Number 8532T1ZQE2 Online
Secure your CK Switches 8500 Series Pushbutton Switch Model 8532T1ZQE2 online today. Crafted for reliability, these switches support up to 3 amps, feature epoxy seals, and are RoHS compliant. Perfect for telecommunications and networking applications, they offer precise actuation, various actuator options, and robust contact materials like coin silver and gold over silver plating. With an impressive cycle life of up to 250,000 actuations and operating temp range of -30°C to 65°C, these switches deliver dependable operation in compact designs suitable for panel mounting in high-precision systems.
Order your CK Switches 8500 Series Pushbutton Model 8532T1ZQE2 today and ensure reliable control with this durable, RoHS-compliant switch designed for demanding environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 8532T1ZQE2?
You can click on the BUY or RFQ button to purchase 8532T1ZQE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 8532T1ZQE2?
You can download the 8532T1ZQE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 8532T1ZQE2?
C&K COMPONENTS
