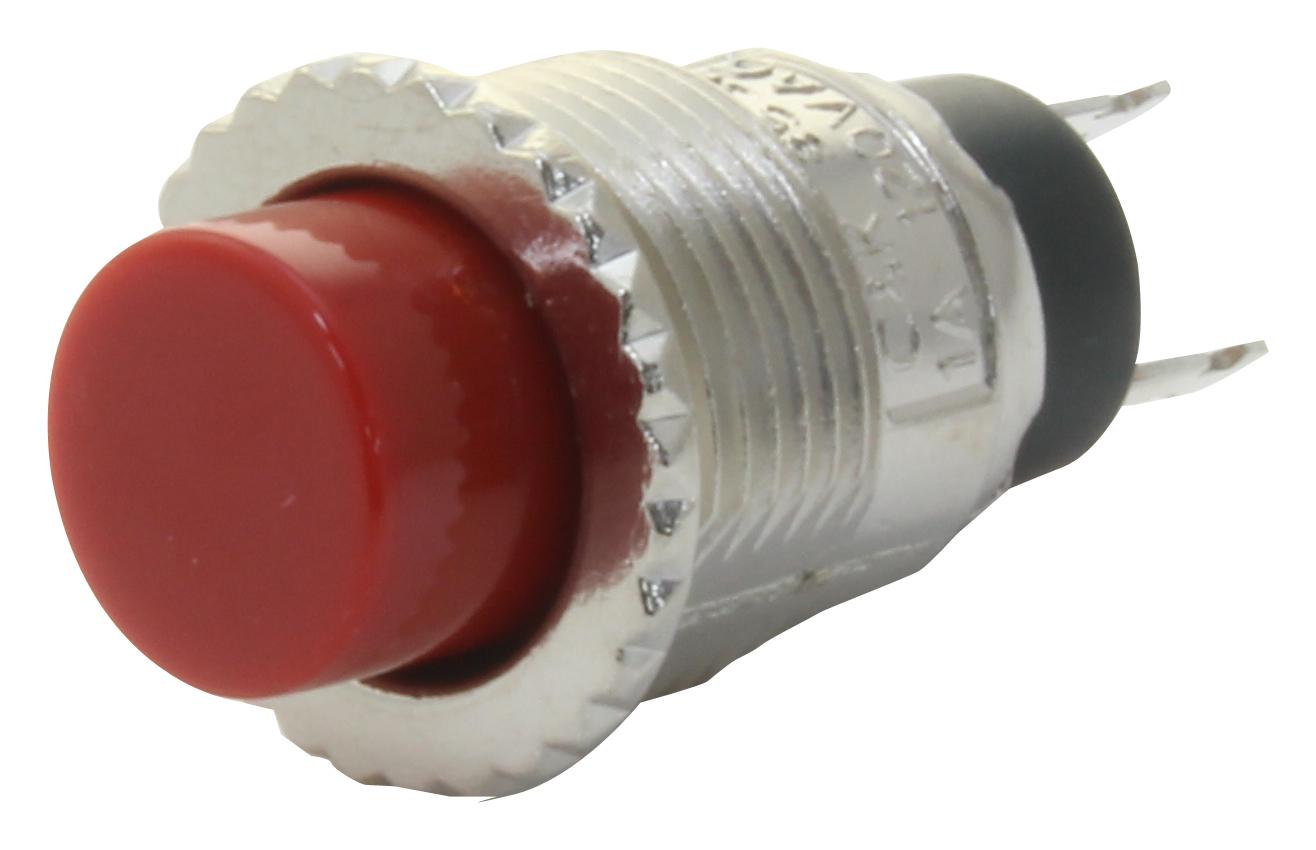

C&K COMPONENTS 8532T1ZQE3 Subminiature Pushbutton Switch
The 8500 Series Subminiature Pushbutton Switches provide reliable, miniature pushbutton control solutions for telecommunications, networking, and computer peripherals. Featuring exceptional contact design and ratings up to 3 AMPS, these switches are RoHS compliant and available with various actuation types, terminal options, and sealing configurations. Ideal for panel mounting in applications demanding durability, they offer high electrical life with epoxy terminal seals and precise dimensions for easy integration. Suitable for environments with operating temperatures between -30°C to 65°C, the 8500 Series ensures long-lasting performance in demanding technical settings.
C&K COMPONENTS 8532T1ZQE3 Subminiature Pushbutton Switch Specifications:
- Contact Material: Coin silver, silver plated
- Contact Rating: 3 AMPS @ 120 V AC or 28 V DC
- Electrical Life: 10,000 actuations (855X), 250,000 actuations (853X)
- Contact Resistance: Below 30 mΩ initially
- Operating Temperature: -30°C to 65°C
- Terminal Seal: Epoxy
- Material: Nylon, black; Brass, nickel plated
- Mounting Nut & Lockwasher: Brass, nickel plated; Steel, bright
- Dimensions: Panel thickness .005 to .125 inches, approx. 0.13 to 3.18 mm
- Frame Material: Nylon, matte or gloss finish
- Suitable for PCB bottom-wash cleaning methods
- Certifications: RoHS compliant when with G or Q contact material
Buy the CK Series Subminiature Pushbutton: 8532T1ZQE3
Order the CK Series 8532T1ZQE3 subminiature pushbutton switch online today for reliable performance in telecom, networking, and control panels. Designed for high durability, with ratings up to 3 AMPS and epoxy terminal seals, these switches excel in demanding environments. Featuring various actuator and termination options, they ensure easy installation and consistent operation over hundreds of thousands of cycles. Perfect for engineers and technicians seeking high-quality, RoHS-compliant control components for industrial and electronic device applications.
Get CK Series 8532T1ZQE3 pushbutton switch today—built for precision and long-lasting durability in demanding applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 8532T1ZQE3?
You can click on the BUY or RFQ button to purchase 8532T1ZQE3 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 8532T1ZQE3?
You can download the 8532T1ZQE3 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 8532T1ZQE3?
C&K COMPONENTS
