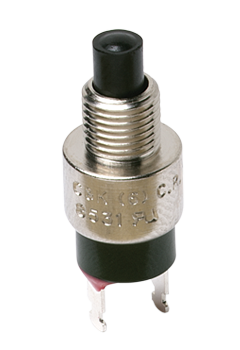

C&K COMPONENTS 8532TZBE2 SPST Off-Momentary Switch
The C&K COMPONENTS 8532TZBE2 is a subminiature pushbutton switch within the 8500 series, engineered for compact and reliable operation. It provides an SPST off-momentary switching function, making it suitable for applications requiring momentary contact. Constructed with glass-filled phenolic or diallyl phthalate (DAP) case material and a phenolic or glass-filled polyester plunger, this switch offers durability and performance. It is RoHS compliant and designed for use in telecommunications equipment, computers, and peripherals. The switch's reliable contact design and epoxy terminal seal ensure consistent operation and protection against environmental factors. Available with various actuator, plunger, cap, and frame options to meet specific application requirements.
C&K COMPONENTS 8532TZBE2 SPST Off-Momentary Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- Case Material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- Plunger Material: Phenolic or glass filled polyester (UL94V-0)
- Cap and Frame Material: Nylon, black
- Electrical Life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- Contact Material: Coin silver, silver plated (Q contact material)
- Contact Resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 65ºC
- Torque Specs: 15/32” bushings - 50 in. lbs max; 1/4 -40 bushing types - 12 in. lbs max
- Switch Function: SPST Off-Momentary
- Typical Applications: Telecommunications, networking equipment, computers, peripherals
