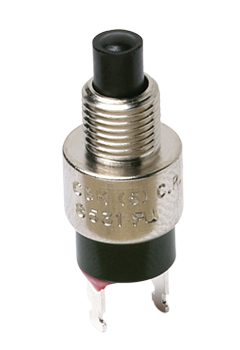

C&K COMPONENTS 8533SZQE2 Subminiature Pushbutton Switch
The C&K COMPONENTS 8533SZQE2 is a subminiature pushbutton switch ideal for applications requiring a compact and reliable switching solution. It boasts a reliable contact design and is RoHS compliant, making it suitable for environmentally conscious designs. The switch offers versatility with options for plunger height, termination type, and cap/frame color, allowing for customization to meet specific application requirements. It finds use in telecommunications equipment, computers, and peripherals, providing a dependable interface for various control and signaling functions.
C&K COMPONENTS 8533SZQE2 Subminiature Pushbutton Switch Specifications:
- contact_rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- case_material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- plunger_material: Phenolic or glass filled polyester (UL94V-0)
- cap_and_frame_material: Nylon
- electrical_life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- contact_material: Coin silver, silver plated (Q contact material)
- contact_resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- insulation_resistance: 10[9] Ω min.
- terminals_material: Copper alloy, silver plated
- terminal_seal: Epoxy
- dielectric_strength: 1,000 Vrms min. @ sea level
- hardware_material: Brass, nickel plated (nut); Steel, bright nickel plated (lockwasher)
- operating_temperature: -30ºC to 65ºC
- torque_specs: 15/32” bushings - 50 in. lbs max; 1/4 -40 bushing types - 12 in. lbs max
Buy the 8533SZQE2 C&K COMPONENTS Subminiature Pushbutton Switch | myMectronic
Purchase the C&K COMPONENTS 8533SZQE2 securely online and ensure reliable performance for your applications.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 8533SZQE2?
You can click on the BUY or RFQ button to purchase 8533SZQE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 8533SZQE2?
You can download the 8533SZQE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 8533SZQE2?
C&K COMPONENTS
