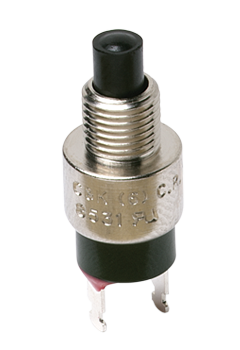

C&K COMPONENTS 8552TZQE2 Subminiature Pushbutton Switch
The C&K COMPONENTS 8552TZQE2 is a subminiature pushbutton switch suitable for telecommunications, computers, and peripherals. It offers a reliable contact design, pre-travel or over-travel models, and is RoHS compliant. The switch is available with various options for actuators, plungers, terminations, and frame colors, allowing for customization to meet specific application needs. It is designed for secure and reliable operation in a wide range of industrial and commercial environments.
C&K COMPONENTS 8552TZQE2 Subminiature Pushbutton Switch Specifications:
- Contact Rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- Case Material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- Plunger Material: Phenolic or glass filled polyester (UL94V-0)
- Cap and Frame Material: Nylon
- Electrical Life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- Bushing Material: Brass, nickel plated
- Contact Material: Coin silver, silver plated (Q contact material)
- Contact Resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Terminals: Copper alloy, silver plated
- Terminal Seal: Epoxy
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Hardware: Nut: Brass, nickel plated; Lockwasher: Steel, bright nickel plated
- Operating Temperature: -30ºC to 65ºC
- Torque Specs: 15/32” bushings - 50 in. lbs max; 1/4 -40 bushing types - 12 in. lbs max
