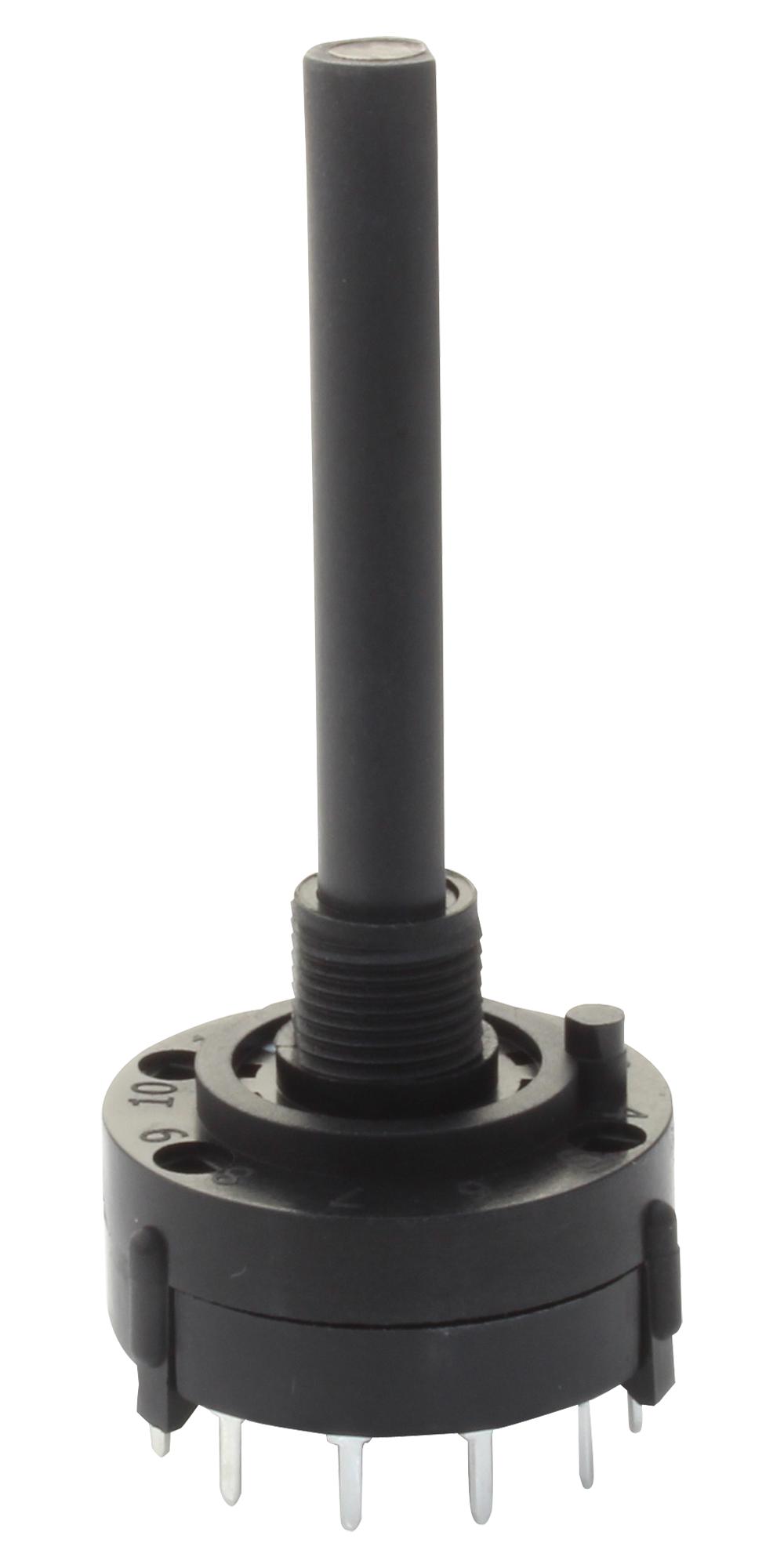

C&K COMPONENTS A12505RNZQ Rotary Switch
The rotary switch is a versatile 1-4 pole device designed for industrial, automation, and control applications. Featuring multiple positions and index options, it supports both shorting and non-shorting contacts, with high durability and precision. Made with glass-filled nylon housing and brass contacts, it withstands temperatures from -30°C to 85°C. Suitable for panel or PCB mounting, it offers a reliable, RoHS-compliant solution for various industrial and consumer products, ensuring effective electrical operation and long service life.
C&K COMPONENTS A12505RNZQ Rotary Switch Specifications:
- Contact Rating: Switch - 2.5 AMPS @ 125 V AC; 1 AMP @ 250 V AC; 350 mA @ 125 V DC (UL/CSA). Carry - 5 AMPS continuous.
- Electrical Life: Up to 15,000 make-and-break cycles at full load, up to 300,000 detent operations.
- Contact Resistance: Below 20 mΩ, initial @ 2-4 V DC, 100 mA, for silver and gold plated contacts.
- Insulation Resistance: 10^9 ohms minimum.
- Dielectric Strength: 1,000 Vrms minimum @ sea level.
- Operating & Storage Temperature: -30°C to 85°C.
- Housing & Bushing: Glass filled 6/6 nylon (UL 94V-0).
- Movable Contacts: Coin silver, silver plated or brass with gold/silver over nickel, depending on contact material.
- Terminal Material: Brass, nickel plated, epoxy sealed.
- Actuation Torque: 8-16 oz-in, maximum torque 30 oz/in.
- Mounting Style: Panel or PCB.
Buy the A Series Rotary Switch: 1-4 Pole Rotary Switches - A12505RNZQ
Order the A Series rotary switch A12505RNZQ online today for a rugged, high-performance control component suitable for industrial automation, appliances, and equipment. Featuring robust nylon housing and high-quality contacts, this switch supports multiple positions and ensures long-lasting durability with up to 15,000 cycles. Perfect for panel and PCB mounting, it offers RoHS compliance, excellent electrical resistance, and reliable performance across wide temperature ranges. Purchase now to enhance your control systems with a dependable rotary switch engineered for precision and longevity.
Get A Series rotary switch 1-4 pole model A12505RNZQ today—built for industrial durability and reliable control in demanding environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS A12505RNZQ?
You can click on the BUY or RFQ button to purchase A12505RNZQ from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part A12505RNZQ?
You can download the A12505RNZQ datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of A12505RNZQ?
C&K COMPONENTS
