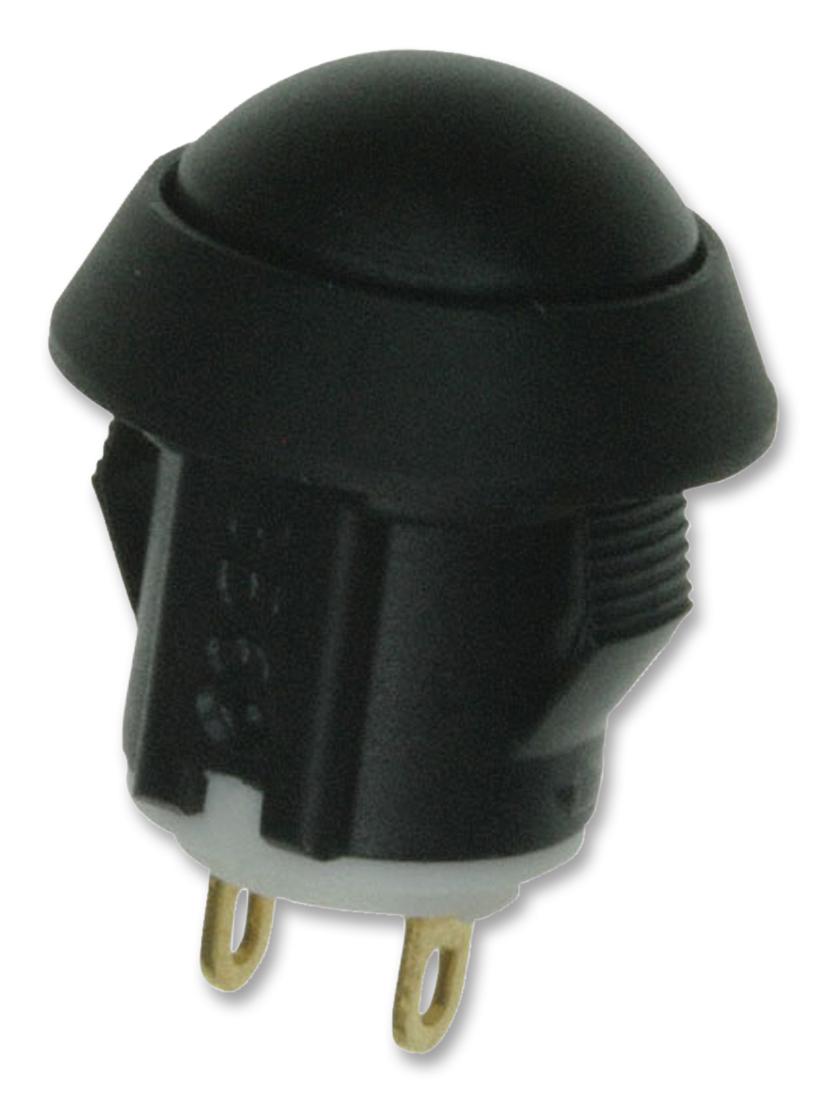

C&K COMPONENTS AP2D200SZBE industrial pushbutton switch
The AP Series industrial pushbutton switch is designed for harsh environment applications with IP67 sealing, high durability of 1,000,000 cycles, and optional illumination. Features include a snap-in or threaded mounting, SPST momentary operation, and a contact rating up to 125 V AC or 24 V DC. Constructed with PBT housing and a copper alloy contact system, it withstands vibration, shock, and temperature extremes from -40°C to 85°C, making it suitable for industrial, medical, transportation, and military equipment. Customizable with various colors and cap options, it offers reliable performance in demanding conditions.
C&K COMPONENTS AP2D200SZBE industrial pushbutton switch Specifications:
- Mounting: Snap-in or threaded with panel seal gasket
- Sealing: IP67 for threaded, IP65 for snap-in
- Operation: SPST momentary, contact rating up to 125 V AC and 24 V DC
- Mechanical Life: 1,000,000 cycles
- Electrical Current Rating: 200mA @ 24 V DC, 125mA @ 125 V AC
- Total Travel: 2.1 ± 0.2 mm
- Operating Force: 4N ± 1N (standard), 2N ± 0.5N (option)
- Vibration Resistance: 10-500 Hz, 10g Max
- Shock Resistance: 60g, 11ms wave
- Materials: Housing, Base, Cap - PBT; Contacts - Copper alloy, gold over silver
- Operating Temperature: -40°C to 85°C (non-illuminated), up to +105°C (illuminated)
- Ingress Protection: IP67 (threaded), IP65 (snap-in)
- Wire Leads: UL1569 22 AWG black wires
- Certifications: RoHS compliant, UL listed
- Environmental: ESD protection 20 KV min
Buy the Buy CK Switches AP Series Industrial Pushbutton Switch Part Number AP2D200SZBE Online
Purchase the CK Switches AP Series industrial pushbutton switch online today for reliable, high-performance operation in harsh environments. With IP67 sealing, a mechanical life of 1,000,000 cycles, and customizable colors and illumination options, this switch is ideal for industrial, medical, transportation, and military applications. Its rugged construction with PBT housing, gold-plated contacts, and vibration-shock resistance ensures long-term durability and safety. Enjoy fast delivery and expert support when you buy online, enhancing your project's quality and efficiency.
Order your CK Switches AP Series AP2D200SZBE today and ensure durable, reliable operation in demanding industrial, military, or medical projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS AP2D200SZBE?
You can click on the BUY or RFQ button to purchase AP2D200SZBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part AP2D200SZBE?
You can download the AP2D200SZBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of AP2D200SZBE?
C&K COMPONENTS
