C&K COMPONENTS AP4D200TZBE Industrial Pushbutton Switch
The AP Series industrial pushbutton switch features IP67 sealing for harsh environments, with a mechanical life cycle of 1,000,000 cycles and quick snap-in or threaded mounting options. It has a SPST momentary contact arrangement, operating force of 4N + 1N, and operates from -40°C to 85°C. The switch includes copper alloy contacts with gold/silver plating, PBT housing, and optional illumination in various colors. Suitable for industrial, medical, transportation, and off-road applications, it offers reliable operation with high durability and sealing standards.
C&K COMPONENTS AP4D200TZBE Industrial Pushbutton Switch Specifications:
- Sealing: IP67 for threaded, IP65 for snap-in
- Mechanical life cycle: 1,000,000 cycles
- Operating force: 4N + 1N (standard), 2N + 0.5N (optional)
- Total travel: 2.1 ± 0.2 mm
- Operating temperature: -40°C to 85°C
- Contact rating: 200mA @ 24 V DC, 100mA @ 50 V DC, 400mA @ 32 V AC, 125mA @ 125 V AC
- Materials: PBT housing and base, copper alloy contacts, gold/silver plating
- Mounting: Snap-in or threaded with hex nut and panel seal gasket
- Shock resistance: 60g for 11ms, Vibration: 10-500 Hz at 10g
- LED options: various colors including red, green, amber; forward voltage and current specified; polarity reversal for bi-color

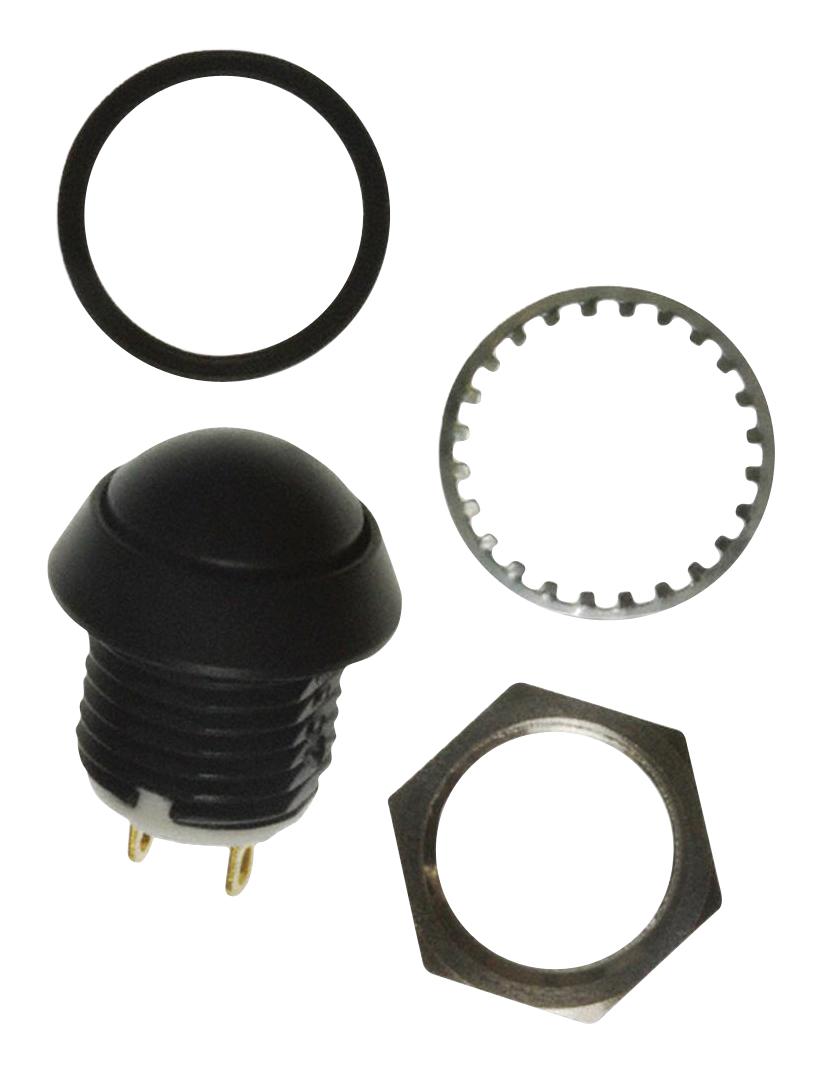

Buy the CK Switches Series AP Industrial Pushbutton Switch: AP4D200TZBE
Order the CK Switches AP Series industrial pushbutton switch online today to enjoy exceptional durability, high sealing standards, and versatile mounting options. Designed for harsh environments, it offers a mechanical life of 1,000,000 cycles, IP67 sealing, and multiple color options, including illuminated variants. Perfect for industrial, medical, transportation, and off-road applications, this switch ensures reliable switching with a compact design and easy installation. Invest in quality control components that deliver long-lasting performance—order now for immediate fulfillment and technical support.
Get CK Switches AP4D200TZBE today—built for precision, durability, and reliable operation in demanding environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS AP4D200TZBE?
You can click on the BUY or RFQ button to purchase AP4D200TZBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part AP4D200TZBE?
You can download the AP4D200TZBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of AP4D200TZBE?
C&K COMPONENTS
